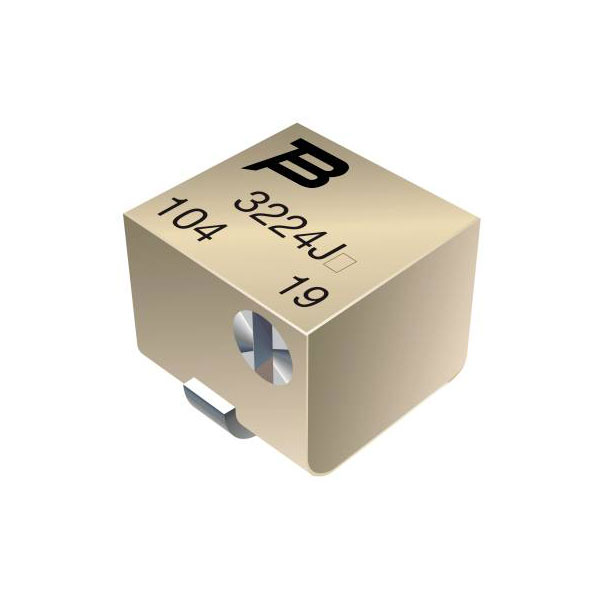

Bourns 3224J-1-104E Cermet trimmer linear 0.25 W 100 kΩ 4320 ° single unit

Bourns 3224J-1-104E Cermet Trimmer, is an advanced component designed for precise resistance adjustments in electronic circuits. This linear trimmer potentiometer offers a resistance value of 100 kO and has a power rating of 0.25 W, ensuring reliable performance for various industrial and consumer electronics applications. The Bourns 3224J-1-104E features a single-turn adjustment mechanism, providing engineers with accurate tuning capabilities, crucial for fine-tuning circuit parameters. Capable of operating within a temperature range of up to 4320 degrees Celsius, this robust component is ideally suited for high-temperature environments, such as automotive systems and power supplies, where precision and durability are paramount. Known as alternate description 2996126, this trimmer potentiometer is a reliable choice for professionals seeking high-quality circuit element adjustment solutions.

Type	Cermet Trimmer
Resistance	100kΩ
Tolerance	± 10%
Power Rating	0.25W
Adjustment Type	Side
Number of Turns	12
Pitch	2.54mm
Connection	SMT
Content	1
Cross Section	4.8mm
Dimensions	(L x W x H) 4.8 x 4.6 x 3.71 mm
Electrical Angle	4320°
Height	3.71mm
Length	4.8mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.6mm
