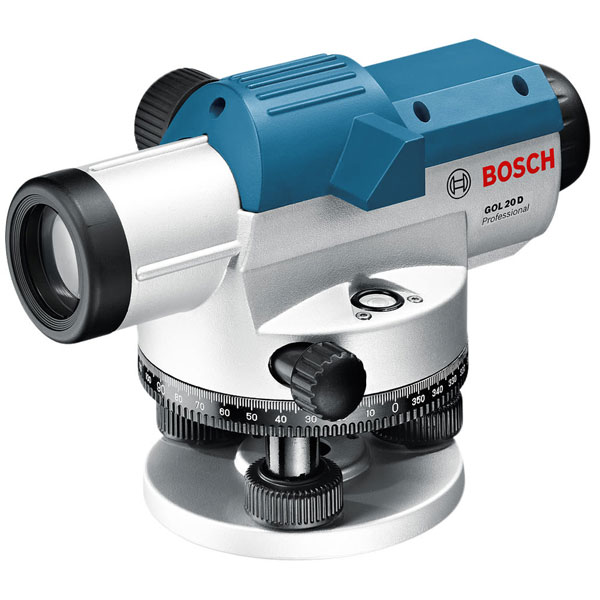

Bosch GOL 20 D Professional Optical Level with fast aperture for excellent staff reading. Robust and reliable, ideal for outdoor use due to its robust housing with dust and splash protection (IP54). A compensator lock protects the pendulum against damage and loss of calibration during transportation.
Supplied with:
1 x BT 160 Professional Building Tripod.
1 x GR 500 Professional Measuring Rod.
1 x Plumb Bob.
1 x Lens Cover.
1 x Adjusting Pin.
1 x Hex Key.
1 x Carrying Case.
Specifications:
Unit of Measure: 360 degrees.
Magnification: 20 x.
Accuracy: &plasmin; 3.0mm at 30m.
Working Range: 60m.
Dust and Splash Protection: IP54.
Operating Temperature: -10 – 50°C.
Storage Temperature: -20 – 70°C.
Tripod Thread: 5/8in.
Weight: 1.5kg.
| Type |
Optical Level Set |
| Accuracy |
3mm at 30m |
| Magnification |
x20 |
| Carrying case |
Yes |
| Depth |
213mm |
| Height |
143mm |
| Horizontal level vial |
Yes |
| Length |
60 m |
| Levelling accuracy (±) |
3 mm/m |
| Manual |
Yes |
| Operating temperature (T-T) |
10 - 50 °C |
| Product colour |
Blue, Grey |
| Selectable units |
Degree |
| Storage temperature (T-T) |
20 - 70 °C |
| Vertical level vial |
No |
| Weight |
1.5 kg |
| Width |
134mm |
