BOPLA 12004300 Pressure compensation Gland M20 PA6 grey-white

BOPLA
Standard range
Order Code:

01-6748

Brand: BOPLA MPN: 12004300
Qty Unit Price (Ex VAT)
1+ £6.34
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
54 in stock, despatched in 4 working days

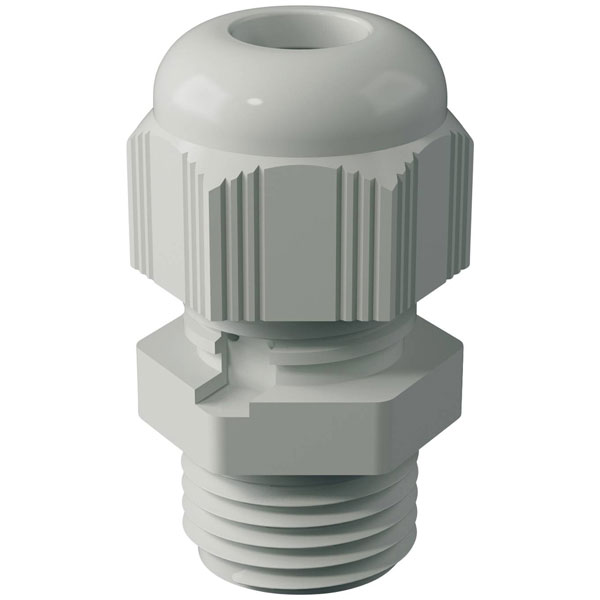

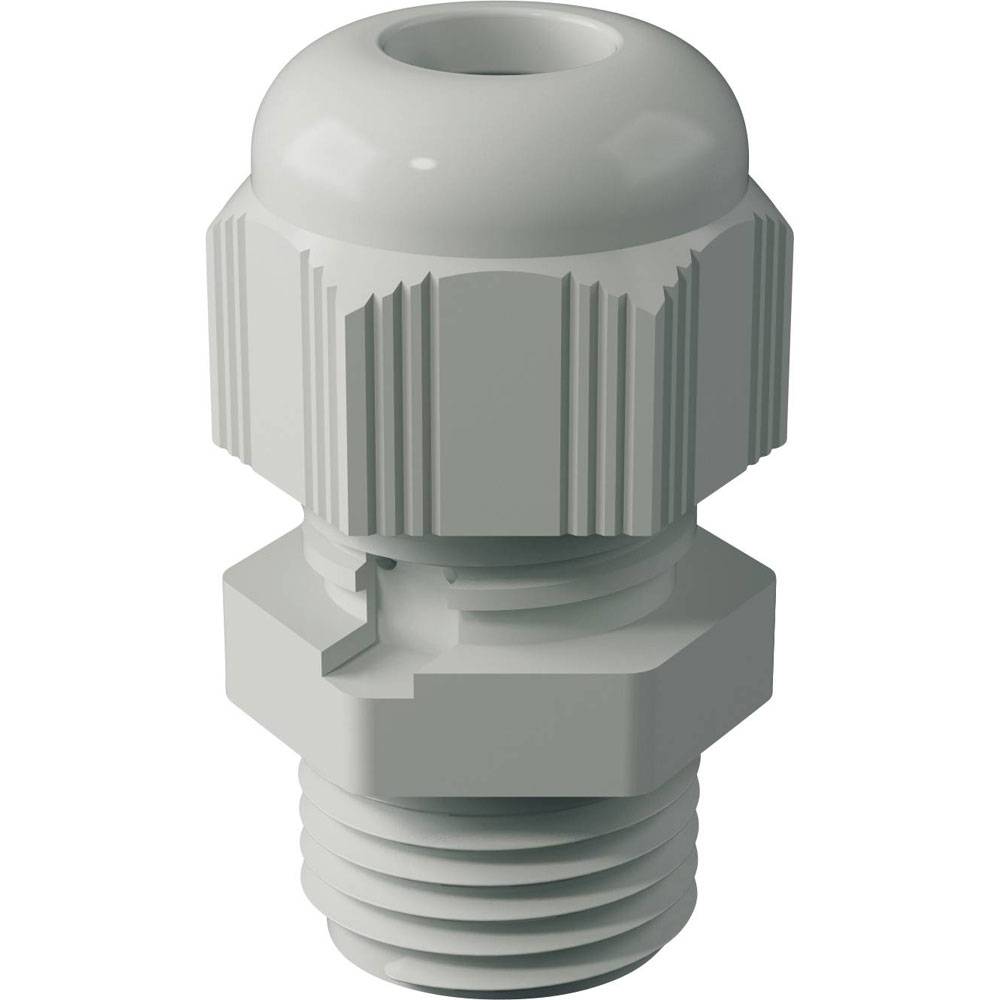

The BOPLA pressure compensation gland, model 12004300, features a pressure equalisation membrane and is made from polyamide 6 in grey-white, RAL 7035. Designed for use in electronic enclosures, it helps prevent condensation by balancing internal and external pressure differences. Typically used in industrial or outdoor applications, it ensures the integrity and protection of sensitive equipment.
Type Pressure compensation gland
Clamp Ø 6mm
External thread M20
Factory colour Grey-white (RAL 7035)
Height 30mm
IP rating IP66/IP67
Manufacturer part # 12004300
Material Polyamide 6
Max. temperature +100°C
Min. temperature -20°C
Misc Attribute DAE-MBF 20 Kabelverschraubung incl. DAE
RoHS-compliant Yes
Spanner size 24mm
Terminal Ø (max.) 11mm
Thread Length 10mm
