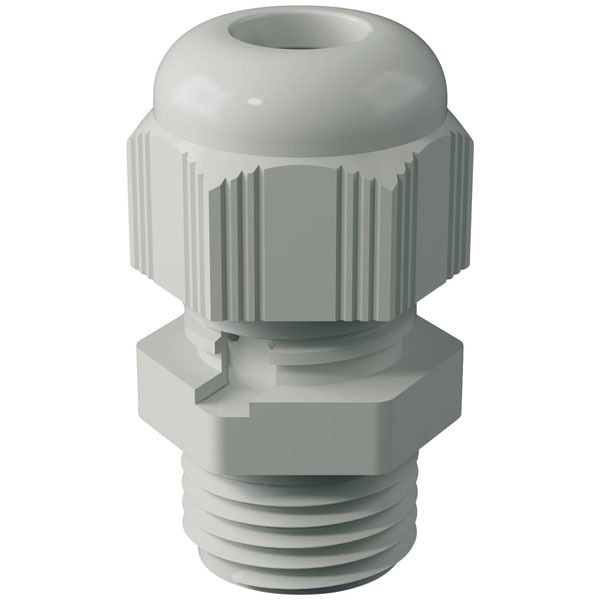

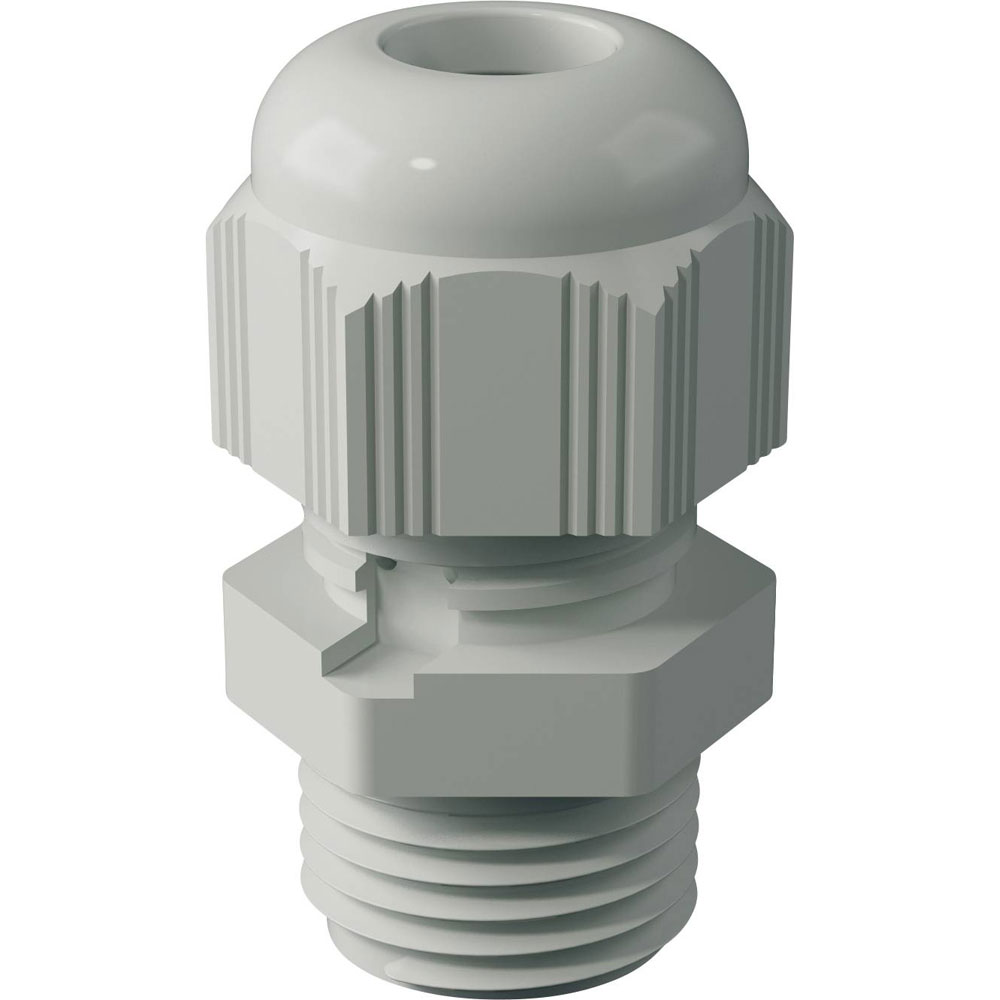

BOPLA 12004100 pressure compensation Gland M12 Polyamide 6 grey-white

The BOPLA 12004100 pressure compensation gland, made of Polyamide 6 in a Grey-white (RAL 7035) colour, features a pressure equalisation membrane. Its main attribute is maintaining equal pressure within enclosures, preventing condensation and protecting components. Typically used in electrical enclosures or protected outdoor installations, this gland enhances durability and performance.

Thread Size	M12
Colour	Grey - white
Material	Polyamide 6
IP Rating	IP66/IP67
Type	Pressure compensation
Clamp Ø	4mm
External thread	M12
Height	25.5mm
Maximum Temperature	+100°C
Min. temperature	-20°C
Spanner size	19mm
Terminal Ø (max.)	7mm
