Block VB 2,3/1/24 PCB Transformer 230V to 24V AC 2.30VA Voltage Adjust

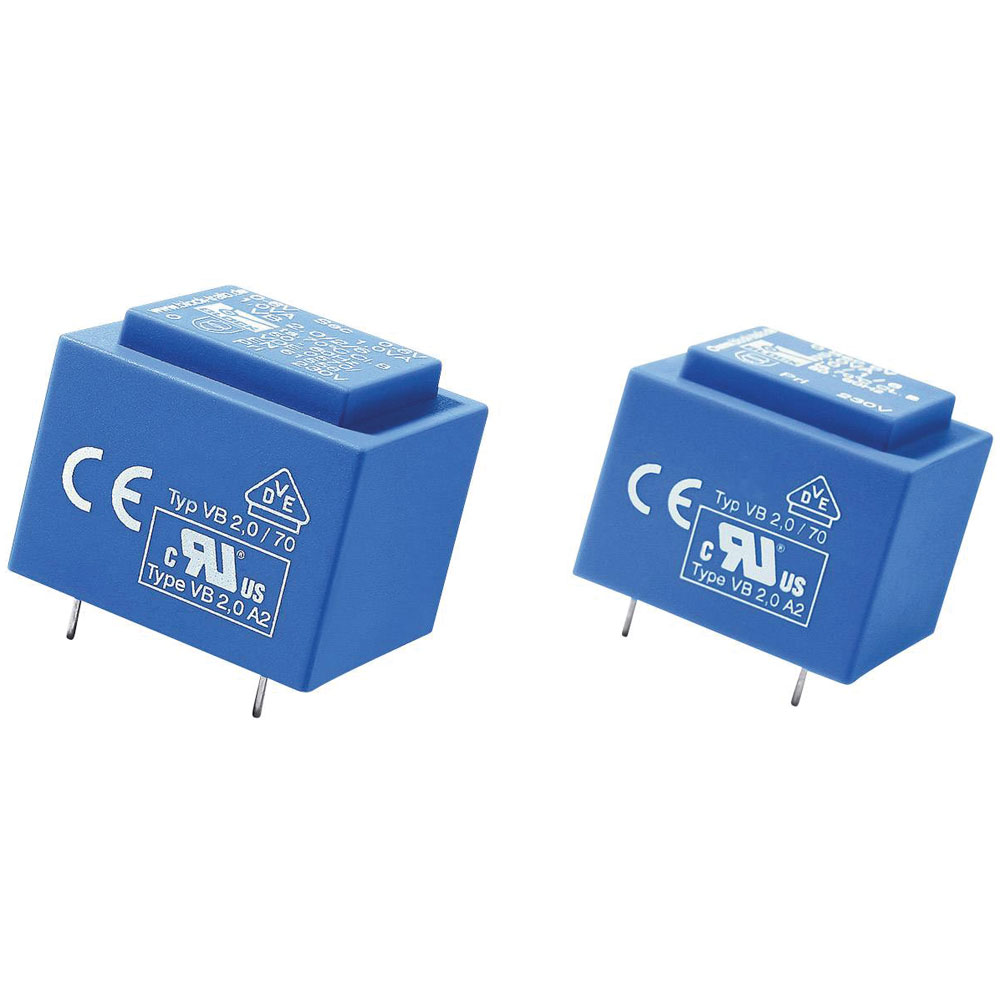

Image Representative of Range

Block VB 2,3/1/24 PCB Transformer 230V to 24V AC 2.30VA Voltage Adjust

Block
Order Code:

01-6454

Brand: Block MPN: VB 2,3/1/24 EAN-13: 4064161027272
Qty Unit Price (Ex VAT)
1+ £5.33
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
9 available to back orderBack-order availability date - 19/12/2025

The Block VB 2,3/1/24 PCB mount transformer is manufactured by Block and features a 230 V AC primary and a 24 V AC secondary with a power rating of 2.30 VA. It is designed primarily for automation and safety applications, ensuring efficient power conversion on printed circuit boards. This transformer is ideal for use in small electrical devices that require a reliable reduction in voltage.
Type PCB mount transformer
Connection Solder pins
Design type moulded
Dim (L x W x H) 32.30 x 27.30 x 29 mm
Efficiency 52%
Height 29mm
Input Voltage 230V AC
Input voltage (number x voltage) 1 x 230 V AC
Insulation class VDE=B, UL=CLASS 130
Length 32.30mm
Max. ambient temperature +70°C
Number of Inputs 1
Number of Outputs 1
Output Voltage 24V AC
Output voltage (number x voltage) 1 x 24 V AC
Power 2.30VA
Width 27.30mm
