Block USTE 1000/2x115 Transformer 1000 VA Mains 2x115V Universal

Block
Order Code:

01-6446

Brand: Block MPN: USTE 1000/2x115 EAN-13: 2050003640961
Qty Unit Price (Ex VAT)
1+ £285.48
25+ £274.92
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 available to back orderBack-order availability date - 06/02/2026

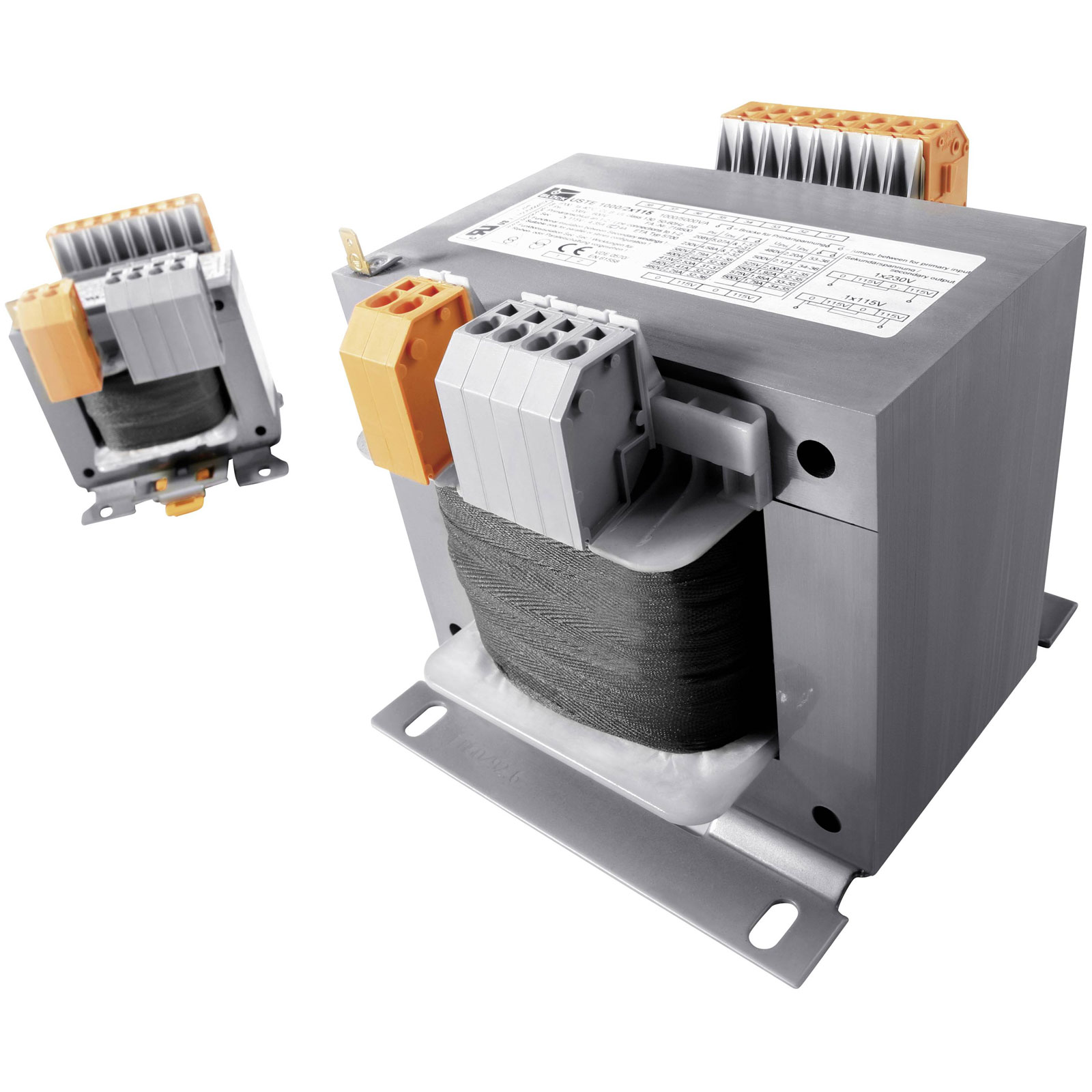

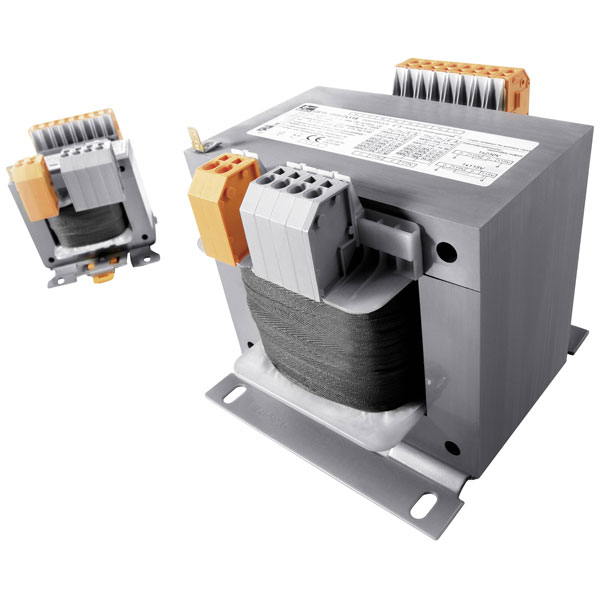

The Block USTE 1000/2x115 is a control transformer designed to convert a primary voltage range of 208-600 V AC to secondary outputs of 2 x 115 or 230 V AC. With a power rating of 1000 VA, it serves as a versatile universal mains transformer for various automation and safety applications. Typical uses include powering control circuits in industrial equipment and machinery where reliable isolation and voltage transformation are necessary.
Type Control transformer
Primary Voltages 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC
Power Rating 1000VA
No of Outputs 2
Connection Spring-loaded terminal
Design type Open
Dimensions (L x W x H) 164 x 150 x 143 mm
Efficiency 94%
Frequency 50 - 60Hz
Height 143mm
Insulation class VDE = B, UL = class 130
Length 164mm
Max. ambient temperature +40°C
Mounting Type L-piece
Number of Inputs 1
Output Voltage 2 x 115 V AC, 230 V AC
Protection Class I
Standards VDE 0570 Part 2-2, DIN EN 61558-2-2, EN 61558-2-2, IEC EN 61558-2-2, UL 5085-1/2, CSA 22.2 No.66
Test mark cULus Listed
Width 150mm
