Block STE 400/23/24 Transformer 219/230/241V to 24V 400VA Low Inrush

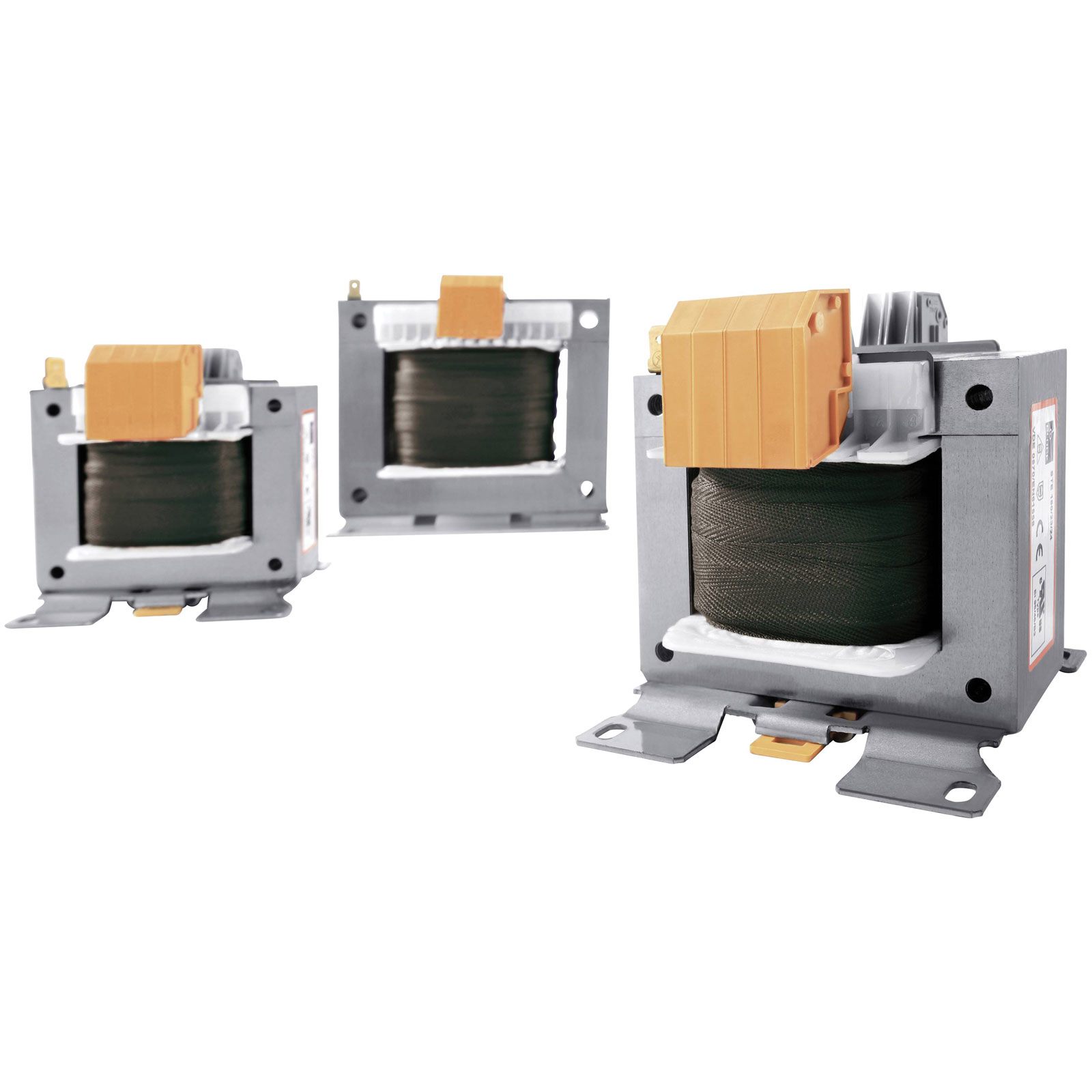

Image Representative of Range

Block STE 400/23/24 Transformer 219/230/241V to 24V 400VA Low Inrush

Block
Standard range
Order Code:

01-6417

Brand: Block MPN: STE 400/23/24
Qty Unit Price (Ex VAT)
1+ £87.35
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
8 in stock, despatched in 4 working days

The STE 400/23/24 Control Transformer, manufactured by Block, is a versatile device offering various applications in automation and safety. It transforms 219 V AC, 230 V AC, and 241 V AC to a safe 24 V AC with a capacity of 400 VA, ideal for isolating and controlling voltage. Typical applications include use as a mains transformer in automation systems, ensuring reliable power and safety standards are met.
Connection Spring-loaded terminal
Design type Open
Dim (L x W x H) 104 x 120 x 121 mm
Efficiency 92%
Fitting method Up to 250 VA: CombiBoard for TS-35 rail
Frequency 50 - 60Hz
Height 121mm
Input voltage (number x voltage) 1 x 219 V AC, 230 V AC, 241 V AC
Insulation class VDE = B, UL = 130
Length 104mm
Max. ambient temperature +40°C
Misc Attribute STE 400/23/24
Mounting Type L-piece
No. of inputs 1
No. of outputs 1
Output voltage 24V AC
Output voltage (number x voltage) 1 x 24 V AC
Power 400VA
Protection class I
RoHS-compliant Yes
Standards UL 5085, CSA 22.2 (E103521)
Test mark cULus recognized
Type Control transformer
Weight 5kg
Width 120mm
