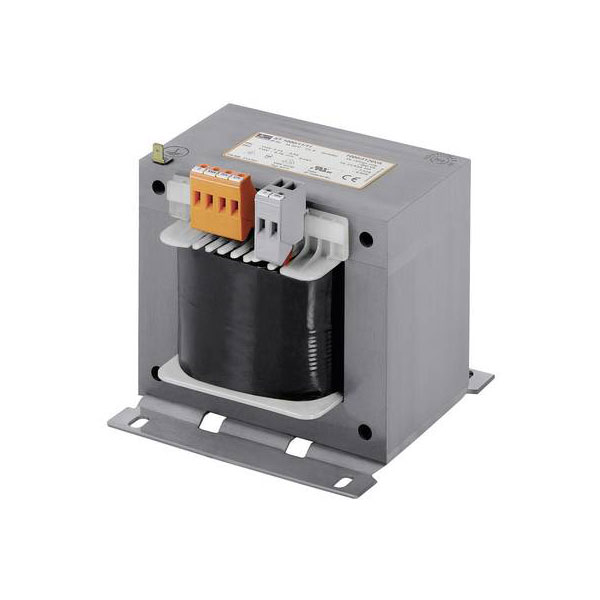

Block ST 100/23/12 Transformer 100VA 1x219V/230V/241V to 12V AC Low Inrush

Image Representative of Range

Block ST 100/23/12 Transformer 100VA 1x219V/230V/241V to 12V AC Low Inrush

Block
Standard range
Order Code:

01-6400

Brand: Block MPN: ST 100/23/12
Qty Unit Price (Ex VAT)
1+ £40.86
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The Block ST 100/23/12 is a versatile transformer designed for isolation and safety applications with input voltages of 219, 230, and 241 V AC and an output of 12 V AC at 100 VA. It is commonly applied in automation systems to provide safe and reliable power conversion. The transformer's compact design and robust build make it suitable for integration into various electrical and industrial setups.
Connection Screw terminal
Design type open
Dim (L x W x H) 76 x 84 x 95 mm
Efficiency 86%
Fitting method Base plate
Frequency 50 - 60Hz
Height 95mm
Input voltage (number x voltage) 1 x 219 V AC, 230 V AC, 241 V AC
Insulation class VDE = B, UL = class 105
Length 76mm
Max. ambient temperature +40°C
Misc Attribute ST 100/23/12
No. of inputs 1
No. of outputs 1
Output voltage 12V AC
Output voltage (number x voltage) 1 x 12 V AC
Power 100VA
Primary Voltage 230V
Protection class I
RoHS-compliant Yes
Standards VDE, UL 5085-1/-2, CSA 22.2 NO. 66
Test mark cULus recognized
Type Control transformer
Weight 2kg
Width 84mm
