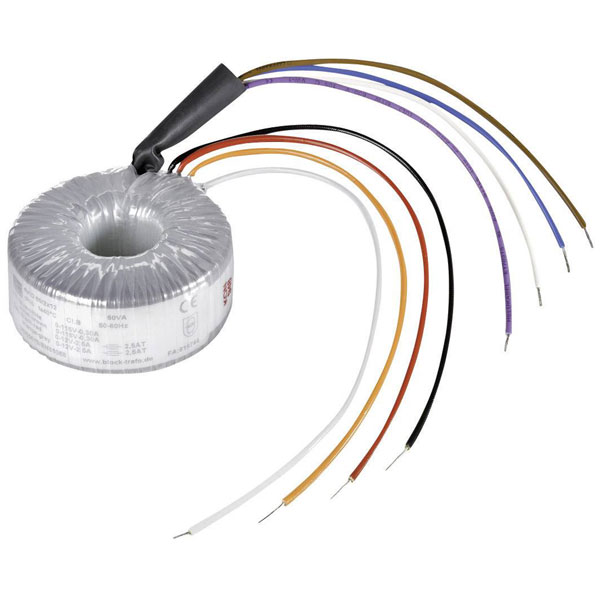

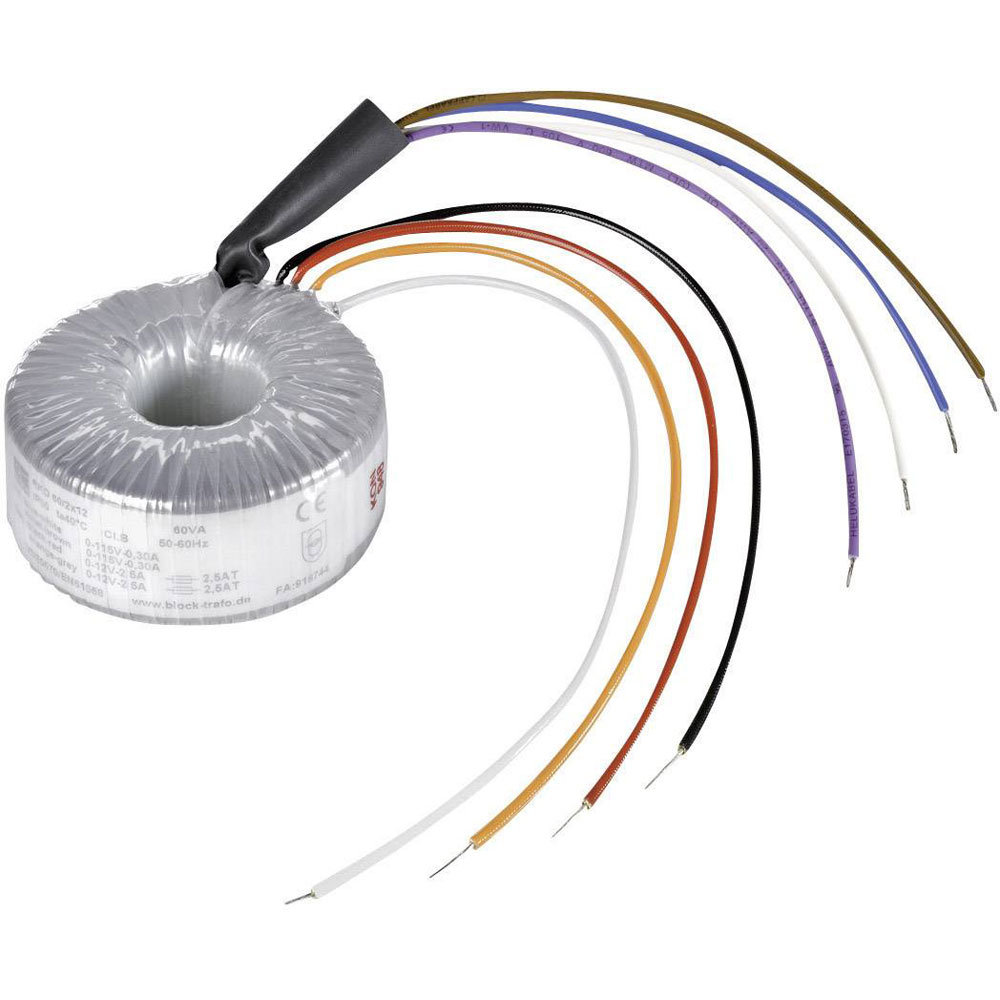

Block RKD50/2x24 Transformer 2x115V 2x24V AC 50VA 1.04A Toroidal Core

Block
Extended range
Order Code:

11-5051

Brand: Block MPN: RKD 50/2x24 EAN-13: 4016138640236
Qty Unit Price (Ex VAT)
1+ £41.69
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 available to back orderBack-order availability date - 05/07/2025

The Block RKD 50/2x24 is a toroidal core transformer featuring dual primary and secondary windings with 2 x 115 V and 2 x 24 V AC outputs at 50 VA and 1.04 A. Known for its efficient design, its compact dimensions are 79 x 39 mm, making it ideal for automation and power supply applications. This transformer is typically used in systems requiring reliable voltage transformation, such as in power supplies and current transformers.
Type Toroidal core transformer
(Ø) 79mm
Connection Open end cable
Design type Open
Dim (Ø x H) 79 mm x 39 mm
Fitting method Central attachment by means of two flexible insulating discs, a metal plate and screw
Frequency 50 - 60Hz
Height 39mm
Input voltage (number x voltage) 2 x 115 V
Insulation class A
Max. ambient temperature +40°C
No. of inputs 2
No. of outputs 2
Output Current 1.04A
Output voltage (number x voltage) 2 x 24 V AC
Power 50VA
Primary Voltage 2 x 115V
Protection class II (prepared)
RoHS-compliant Yes
Standards IEC 61558-2-4; 2-6, DIN EN 61558-2-4; 2-6, VDE 0570 Part 2-4; 2-6
Test voltage 4000V
Weight 0.70kg
