Block RKD 40/2x15 Toroidal Core Transformer 2x115V 40VA 1.33A

Block
Extended range
Order Code:

11-5047

Brand: Block MPN: RKD 40/2x15 EAN-13: 4016138640137
Qty Unit Price (Ex VAT)
1+ £41.25
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 available to back orderBack-order availability date - 02/07/2025

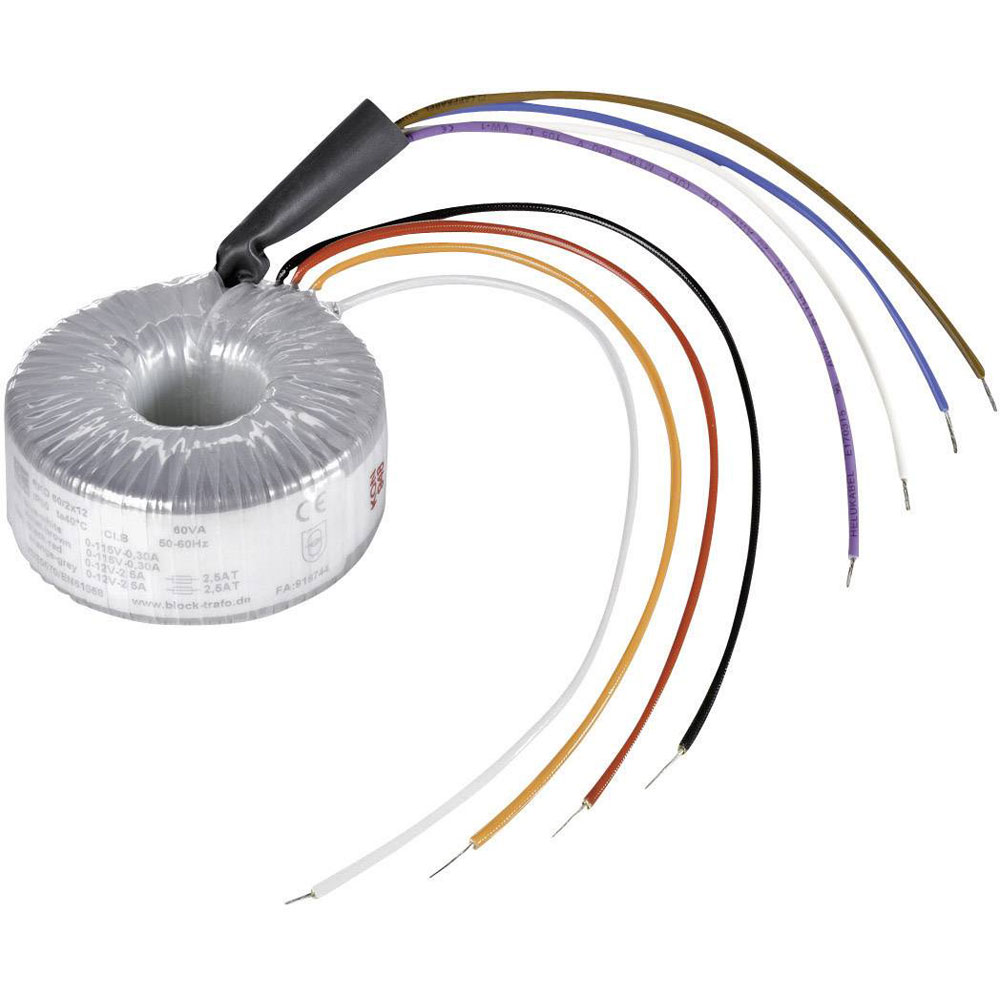

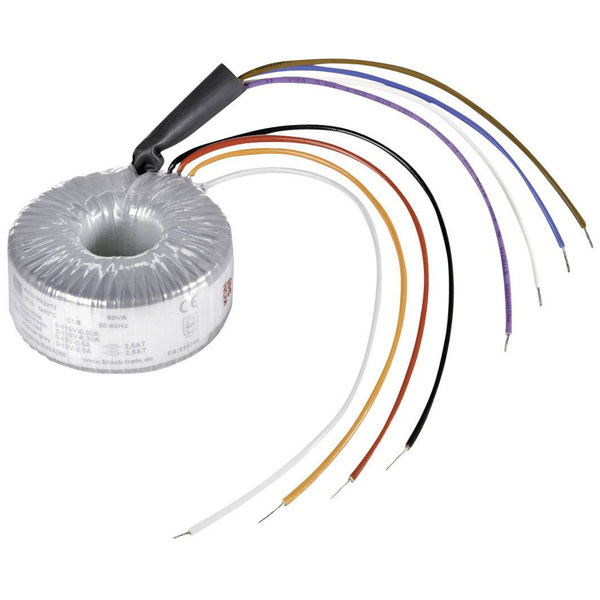

The Block RKD 40/2x15 toroidal core transformer is manufactured by Block and features dual 115 V primary and dual 15 V secondary outputs with a power rating of 40 VA and current of 1.33 A. Its compact design makes it suitable for use in automation systems and halogen lighting applications. Typical applications include power supplies and ring core transformers due to its efficient power distribution capabilities.
Type Toroidal core transformer
(Ø) 77mm
Connection Open end cable
Design type Open
Dim (Ø x H) 77 mm x 34 mm
Fitting method Central attachment by means of two flexible insulating discs, a metal plate and screw
Frequency 50 - 60Hz
Height 34mm
Input voltage (number x voltage) 2 x 115 V
Insulation class A
Max. ambient temperature +40°C
Misc Attribute RKD 40/2x15
No. of inputs 2
No. of outputs 2
Output Current 1.33A
Output voltage (number x voltage) 2 x 15 V AC
Power 40VA
Primary Voltage 2 x 115V
Protection class II (prepared)
RoHS-compliant Yes
Standards IEC 61558-2-4; 2-6, DIN EN 61558-2-4; 2-6, VDE 0570 Part 2-4; 2-6
Test voltage 4000V
Weight 0.56kg
