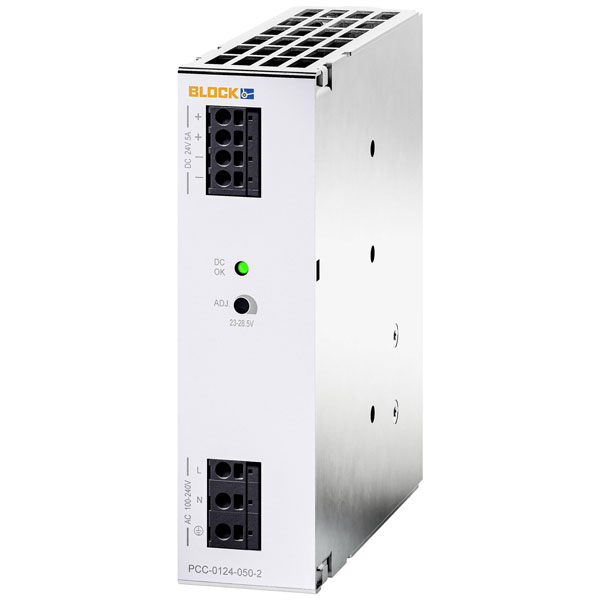

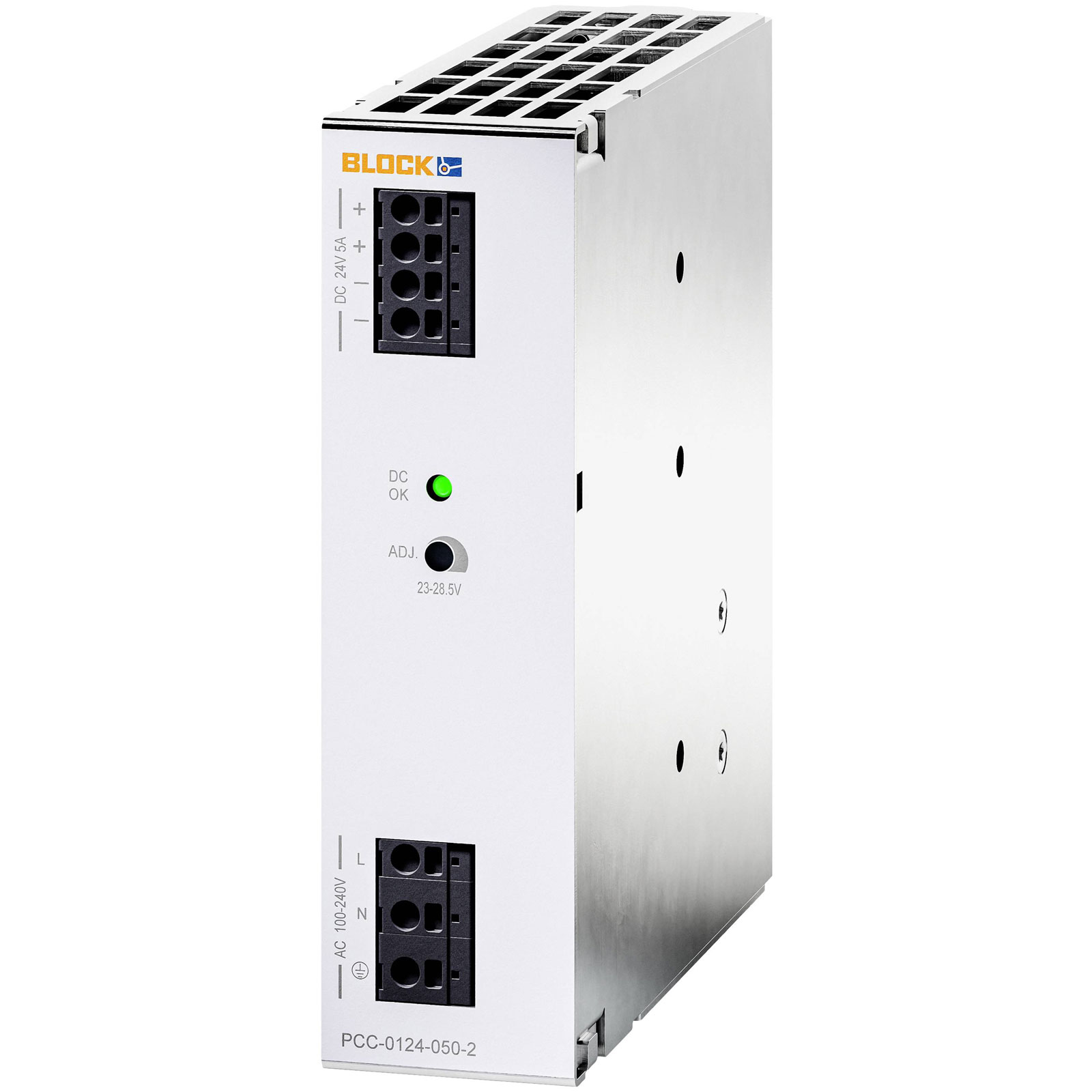

Block PCC-0124-050-2 SMPSU 24 V DC 5 A 120 W Compact & Robust Design

Block
Standard range
Order Code:

01-6386

Brand: Block MPN: PCC-0124-050-2
Qty Unit Price (Ex VAT)
1+ £50.00
10+ £45.00
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

The Block PCC-0124-050-2 SMPSU is a din rail mount power supply unit that delivers 24 V DC at 5 A, providing a total power output of 120 W. It features a single output designed for efficient and reliable performance in industrial applications. This unit is typically used in settings requiring steady power supply solutions, such as automated manufacturing systems and other industrial equipment.
Type SMPSU
Dim (L x W x H) 124 x 35 x 127 mm
Efficiency 88.5%
Height 127mm
Input Voltage 90 – 264 V/AC;
90 - 374V DC
Inputs 1
Length 124mm
Manufacturer part # PCC-0124-050-2
Max. output current 5A
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute PCC-0124-050-2
MTBF 500000h
No. of outputs 1
Nominal input voltage 100 - 240 V/AC
Output current (max.) - rounded 5A
Output voltage 24V DC
Output voltage (max.) 28.5V DC
Output voltage (min.) 23V DC
Output voltage (nominal) 24V DC
Phases 1
Power 120W
Width 35mm
