Block PC-0824-480-0 RCCB 8 Outputs 24 V DC 6 A Overload Protection

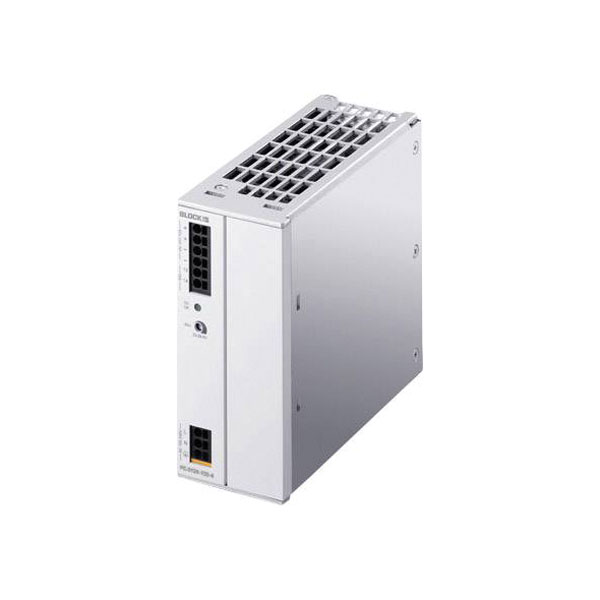

Image Representative of Range

Block PC-0824-480-0 RCCB 8 Outputs 24 V DC 6 A Overload Protection

Block
Extended range
Order Code:

01-6384

Brand: Block MPN: PC-0824-480-0
Qty Unit Price (Ex VAT)
1+ £237.67
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 3 weeks

Manufactured by Block, the PC-0824-480-0 RCCB is a din rail power supply unit designed for industrial applications. It operates on a 24 V DC output with a 6 A capacity and features eight outputs. This rail mount power supply unit is ideally suited for use in various industrial power supply needs.
Type RCCB
Connection Push-in connector
Dim (L x W x H) 124 x 42 x 127 mm
Efficiency 99%
Height 127mm
Input Voltage 18 - 30V DC
Input voltage (max.) 30V DC
Inputs 1
Length 124mm
Manufacturer part # PC-0824-480-0
Max. output current 6A
Max. temperature +70°C
Min. input voltage 18V DC
Min. temperature -25°C
Misc Attribute PC-0824-480-0
No. of outputs 8
Nominal input voltage 24 V/DC
Output current (max.) - rounded 6A
Output voltage 24V DC
Output voltage (nominal) 24V DC
Weight 400g
Width 42mm
