Block FL 42/12 PCB Mount Transformer 2x115V 2x12V AC 42VA 1.75A

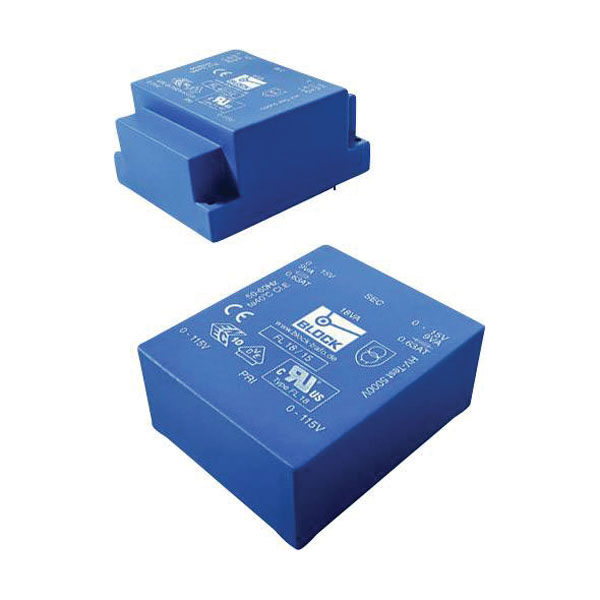

Image Representative of Range

Block FL 42/12 PCB Mount Transformer 2x115V 2x12V AC 42VA 1.75A

Block
Standard range
Order Code:

01-6367

Brand: Block MPN: FL 42/12
Qty Unit Price (Ex VAT)
1+ £47.19
5+ £42.48
10+ £40.58
25+ £39.17
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Block FL 42/12 is a PCB mount transformer by Block, offering dual input voltages of 2 x 115 V and dual output voltages of 2 x 12 V AC, with a power rating of 42 VA and a current rating of 1.75 A. Its compact design is ideal for printed circuit boards in automation systems. This transformer is commonly used in applications requiring reliable voltage transformation with high efficiency.
Type PCB mount transformer
Connection Soldering
Dim (L x W x H) 83 x 70 x 39 mm
Frequency 50 - 60Hz
Height 39mm
Input Voltage 115V
Input voltage (number x voltage) 2 x 115 V
Insulation class VDE=E, UL=105
Length 83mm
Misc Attribute FL 42/12
No. of inputs 2
No. of outputs 2
Output Current 1.75A
Output voltage 12V AC
Output voltage (number x voltage) 2 x 12 V AC
Power 42VA
Protection class II (prepared)
RoHS-compliant Yes
Test mark ENEC 10 (VDE), UL 5085-1/-2, CSA 22.2 No. 66
Weight 0.72kg
Width 70mm
