Block EL 13/9 Control/Isolation/Safety Transformer 230V AC 2x9V AC 13VA

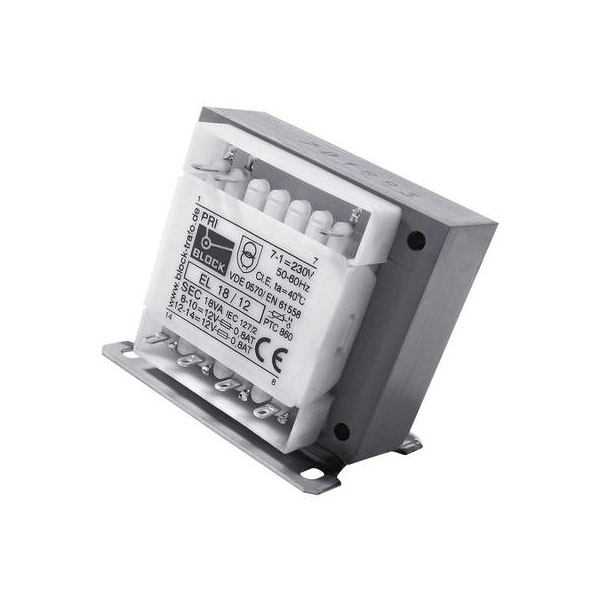

Image Representative of Range

Block EL 13/9 Control/Isolation/Safety Transformer 230V AC 2x9V AC 13VA

Block
Order Code:

01-6360

Brand: Block MPN: EL 13/9 EAN-13: 4016138686654
Qty Unit Price (Ex VAT)
1+ £17.19
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 available to back orderBack-order availability date - 19/12/2025

Manufacturer: Block. The EL 13/9 is a safety transformer with an input of 230 V AC and dual outputs of 9 V AC, rated at 13 VA and 722 mA. It is typically used in automation systems for control and isolation purposes.
Type Control transformer
Connection Screw terminal
Design type Open
Dim (L x W x H) 54 x 40 x 50 mm
Efficiency 67%
Fitting method base plate
Frequency 50 - 60Hz
Height 50mm
Input Voltage 230V AC
Input voltage (number x voltage) 1 x 230 V AC
Insulation class E
Length 54mm
Max. ambient temperature +40°C
Number of Inputs 1
Number of Outputs 2
Output Current 722mA
Output Voltage 9V AC
Output voltage (number x voltage) 2 x 9 V AC
Power 13VA
Primary Voltage 230V
Protection Class II
Width 40mm
