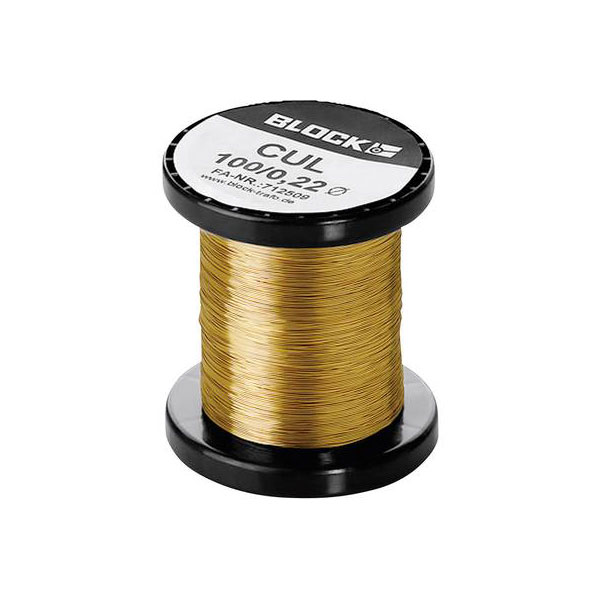

Block CUL500/0.75 Enamel Copper Wire 0.75mm 125m 0.50kg

Block manufactures enamel-coated copper wire with an outside diameter of 0.75 mm, available in a length of 125 meters and a weight of 0.50 kg. This thin, insulated wire is ideal for use in inductive coils and transformers. Its enamel coating ensures durability and effective insulation.

AWG	Not Specified
Number of Cores	1
Conductor Stranding	1 Solid
Insulation Material	Insulating base: min. Polyurethane, mod.
Length	125m
Type	CUL 500
Cable Diameter	0.75mm
Current load capacity	1.55A
Max. temperature range (fixed installation)	+155°C
Max. temperature range (flexible installation)	+155°C
Packaged	Yes
Sold by Metre	No
Standards	IEC 60317-20
Surface	Polished
Temperature Range	+155°C
Weight	0.50kg
