Block CUL100 Enamel-Coated Copper Wire 0.22mm 285m 0.10kg

Block
Standard range
Order Code:

11-4998

Brand: Block MPN: CUL 100/0,22 EAN-13: 4016138670417
Qty Unit Price (Ex VAT)
1+ £7.51
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
30 in stock, despatched in 4 working days

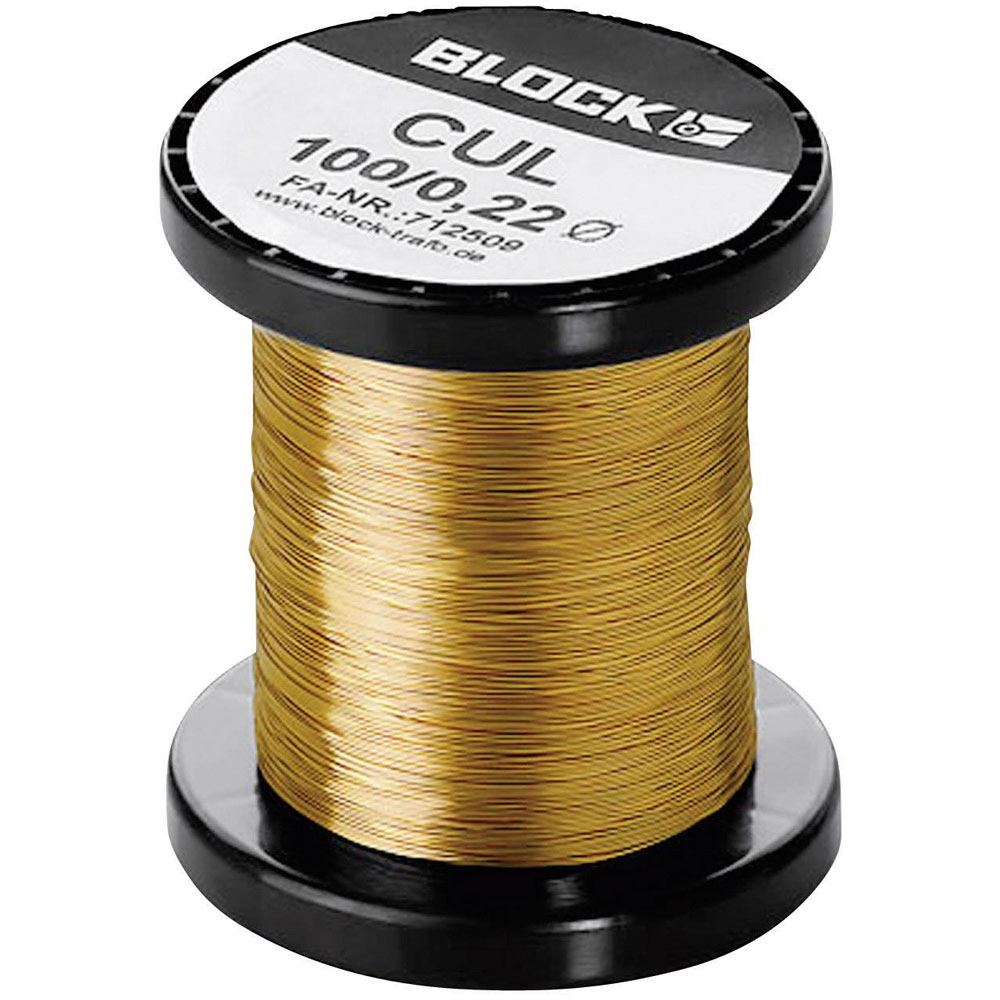

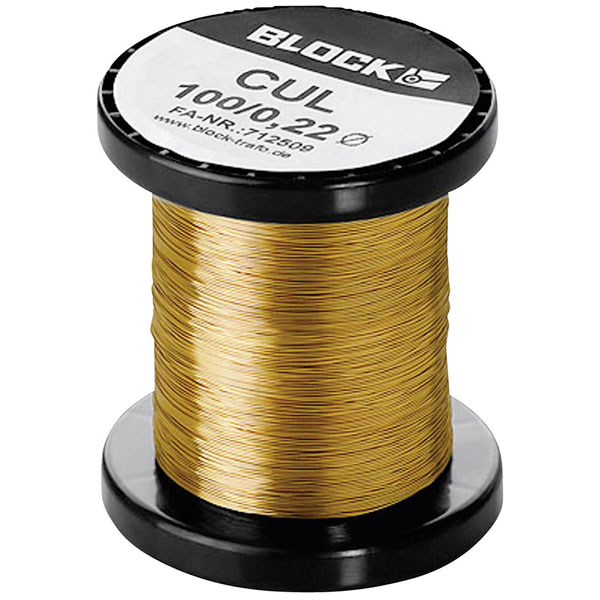

Block Enamel-coated copper wire, manufactured by Block, features an outside diameter of 0.22 mm with a total length of 285 m and a weight of 0.10 kg. This thin, insulated wire is typically used in applications such as transformers and inductive coils. Enamel-coated for protection and durability, it's ideal for electrical and electronic uses requiring precision and reliability.
Insulation material Polyurethane
Cable features Enameled
Cable type CUL 100
Certification marks IEC 60317-20
Current load capacity 0.14A
Halogen-free No
Material (details) Insulating base: min. Polyurethane, mod.
Max. temperature range (fixed installation) +155°C
Max. temperature range (flexible installation) +155°C
No. of leads 1
Outside diameter (w/o coating) 0.22mm
Packaged Yes
Sold per metre No
Surface Polished
Temperature range +155°C
Type Enamel-coated copper wire
Weight 0.10kg
