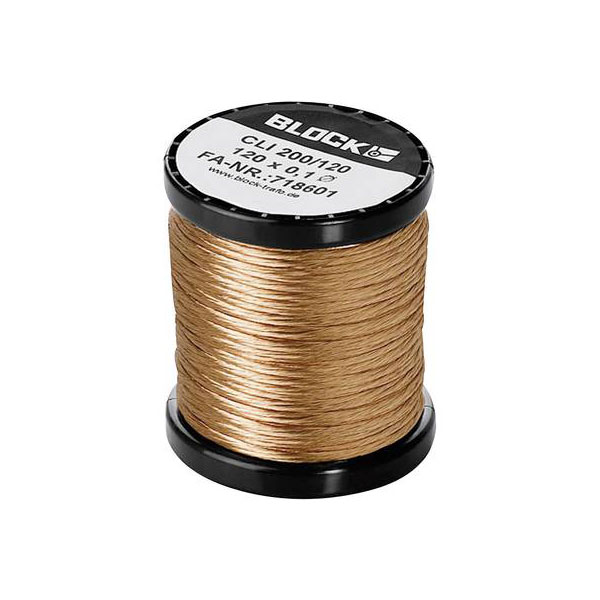

Block CLI200/15 Copper Wire 0.10mm OD 192m 0.20kg Enamel-Coated

Block
Order Code:

11-4992

Brand: Block MPN: CLI 200/15 EAN-13: 4016138670035
Qty Unit Price (Ex VAT)
1+ £26.43
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 5 weeks

Block's enamel-coated copper wire has an outside diameter of 0.10 mm and weighs 0.20 kg over a length of 192 meters. This thin, insulated wire is ideal for use in inductive coils and transformers due to its compact size and durable coating. Typical applications include electronic circuitry and precision winding tasks.
Insulation Material Electrolytic copper
Type CLI 200
Conductor Cross-section 0.118mm²
Core layout 15 x 0.1mm
Current load capacity 0.42A
Max. temperature range (fixed installation) +130°C
Max. temperature range (flexible installation) +130°C
Number of leads 1
Outside diameter (incl. coating) 0.10mm
Packaged Yes
Sold by Metre No
Standards IEC 6031 7-11
Surface Polished
