Block CLI200/120 Enamel-Coated Copper Wire 24m 0.10mm OD 0.20kg

Block
Order Code:

11-4991

Brand: Block MPN: CLI 200/120 EAN-13: 4016138670073
Qty Unit Price (Ex VAT)
1+ £26.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

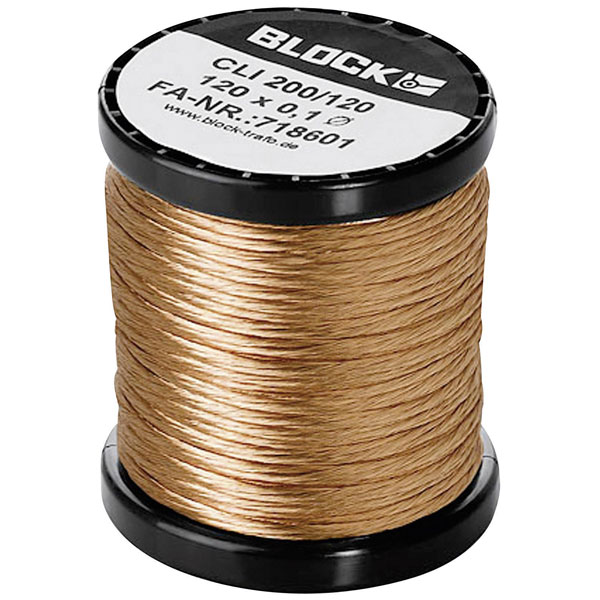

Block manufactures enamel-coated copper wire with an outside diameter of 0.10 mm, which includes the coating. The product is 24 metres long, weighs 0.20 kg, and is ideal for use in transformer or inductive coil applications. As a thin and insulated coil wire, it is perfect for electronic projects requiring precise winding.
Insulation Material Electrolytic copper
Type CLI 200
Conductor Cross-section 0.943mm²
Core layout 120 x 0.10mm
Current load capacity 3.36A
Max. temperature range (fixed installation) +130°C
Max. temperature range (flexible installation) +130°C
Number of leads 1
Outside diameter (incl. coating) 0.10mm
Packaged Yes
Sold by Metre No
Standards IEC 6031 7-11
Surface Polished
