Block AT3 10-22/23-4 Autotransformer 3x200V AC/230V AC 10000 VA

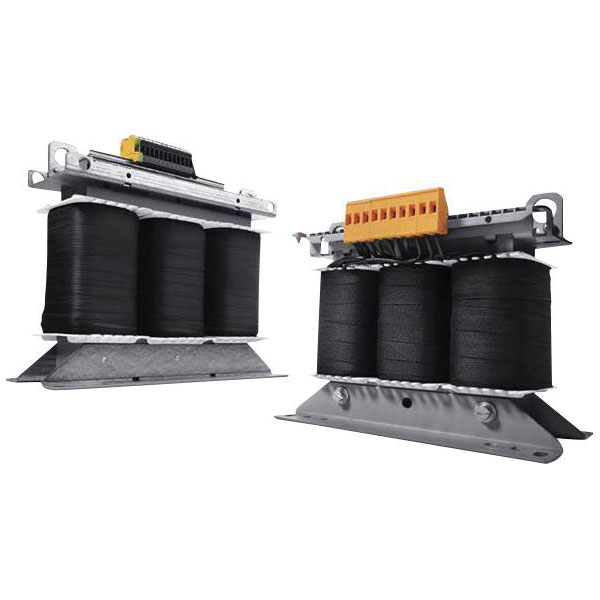

Image Representative of Range

Block AT3 10-22/23-4 Autotransformer 3x200V AC/230V AC 10000 VA

Block
Standard range
Order Code:

01-6308

Brand: Block MPN: AT3 10-22/23-4
Qty Unit Price (Ex VAT)
1+ £646.54
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Block AT3 10-22/23-4 Autotransformer by Block is a power transformer capable of converting 3 x 200 V AC to 3 x 400 V AC, with a power rating of 10000 VA. It features versatile usage in automation and universal transformer applications. Its typical applications include use in variacs and mains transformer settings to ensure safety and efficient power management.
Type Autotransformer
Connection Screw terminal
Design type Open
Dim (L x W x H) 190 x 352 x 280 mm
Efficiency 94%
Frequency 50 - 60Hz
Height 280mm
Input voltage (number x voltage) 3 x 200 V AC, 230 V AC
Insulation class F
Length 190mm
Max. ambient temperature +40°C
Misc Attribute AT3 10-22/23-4
Mounting Type L-piece
No. of inputs 3
No. of outputs 3
Output voltage 400V AC
Output voltage (number x voltage) 3 x 400 V AC
Power 10000VA
Protection class I
RoHS-compliant Yes
Standards According to VDE 0570 Part 2-13, DIN EN 61558-2-13, EN 61558-2-13, IEC 61558-2-13, UL 5085-1/-2, CSA22.2 No. 66
Test mark cULus recognized
Weight 42.40kg
Width 352mm
