BKL 1506128 Spiral Cable 800/3200mm 7G 1.50mm² Orange 1pc

BKL
Standard range
Order Code:

01-5994

Brand: BKL MPN: 1506128
Qty Unit Price (Ex VAT)
1+ £85.82
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

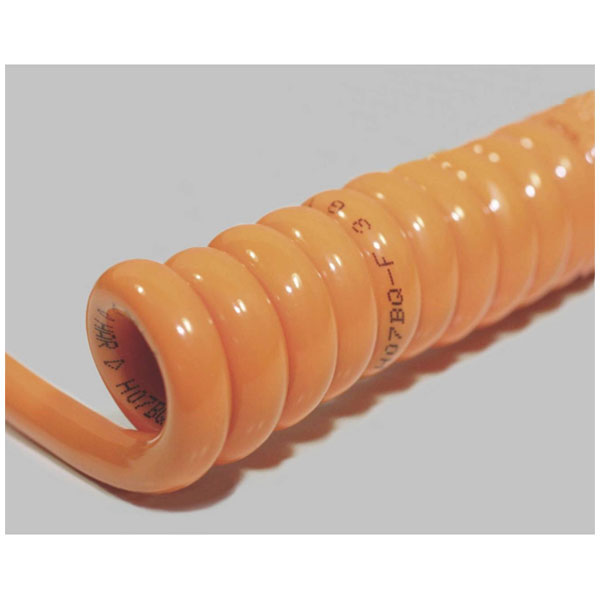

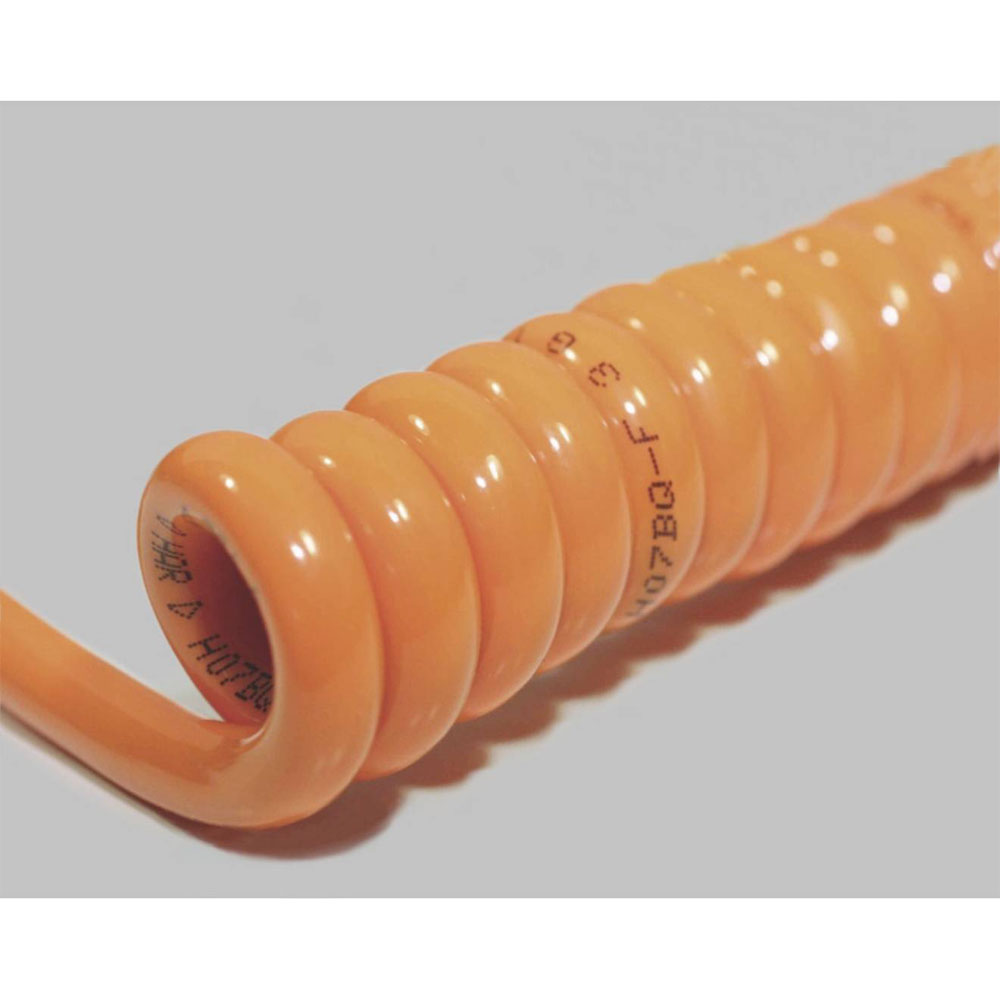

The BKL Electronic 1506128 spiral cable features an orange H07BQ-F sheath, offering expandability from 800 mm to 3200 mm. It comprises seven cores with a cross-section of 1.50 mm², making it suitable for dynamic power and signal applications. Typically used in machinery and robotics, this robust cable provides reliable connectivity in flexible and mobile environments.
Type Spiral cable
Cable features Flexible
Cable type H07BQ-F
Cross section 7 G 1.50 mm²
Cross section (each core) 1.50mm²
Factory colour Orange
Halogen-free Yes
Manufacturer part # 1506128
Max. temperature range (fixed installation) +90°C
Min. temperature range (fixed installation) -40°C
Misc Attribute 1506128
No. of leads 7 G
Nominal voltage 750V
Nominal voltage U0 450V
RoHS-compliant Yes
Shielded No
Spiral lenght (max.) 3200mm
Spiral length (min.) 800mm
