Binder 99 9209 400 04 Micro DIN Connector Plug Straight 4 Pins

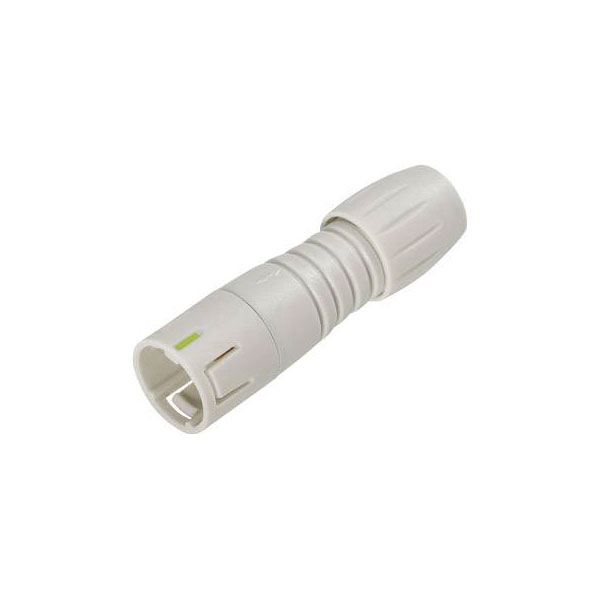

Image Representative of Range

Binder 99 9209 400 04 Micro DIN Connector Plug Straight 4 Pins

Binder
Standard range
Order Code:

01-4805

Brand: Binder MPN: 99 9209 400 04
Qty Unit Price (Ex VAT)
1+ £6.39
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
19 in stock, despatched in 4 working days

The Micro DIN connector, model 99 9209 400 04 by binder, features a straight plug design with a total of 4 pins. This connector is typically used in industrial and automation applications for secure and reliable electronic connections. binder's connectors are known for their robust construction and compact size, making them ideal for space-constrained setups.
AWG 24
Cable Ø (max.) 5mm
Cable Ø range 3 - 5 mm
Cable Ø up to 3mm
Case material PA (UL 94 V-0)
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 0.25 mm² (max)
Factory colour Grey
IP rating IP67
Leading contact (PE) No
Manufacturer part # 99 9209 400 04
max. cross section 0.25mm²
Max. temperature +85°C
Min. temperature -25°C
Misc Attribute Binder
Nominal current 2.50A
Nominal current - rounded value 2.5A
Nominal voltage 125V
Number of pins 4
Total no. of pins 4
Type Micro DIN connector
