Binder 99 9133 462 12 Micro DIN Connector 12 Pins Plug Straight

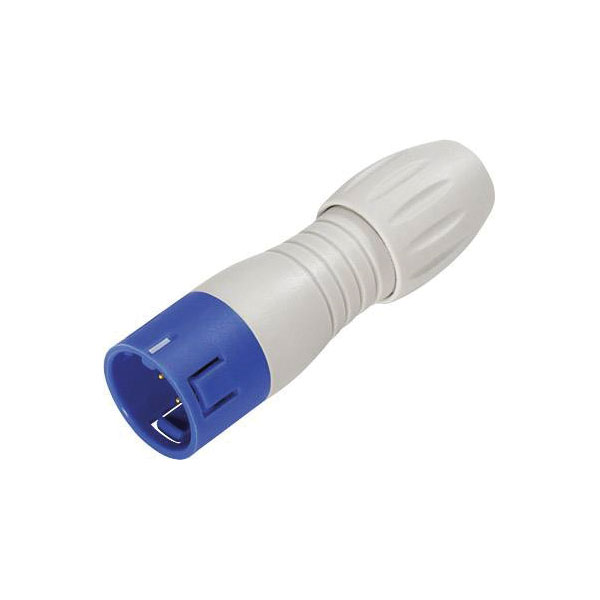

Image Representative of Range

Binder 99 9133 462 12 Micro DIN Connector 12 Pins Plug Straight

Binder
Standard range
Order Code:

01-4794

Brand: Binder MPN: 99 9133 462 12
Qty Unit Price (Ex VAT)
1+ £14.21
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
31 in stock, despatched in 4 working days

The binder 99 9133 462 12 Micro DIN connector is a plug, straight type with a total of 12 pins. Manufactured by binder, it ensures reliable electrical connectivity in compact spaces. It is typically used in industrial automation and instrumentation applications.
AWG 24
Cable Ø (max.) 8mm
Cable Ø range 6 - 8 mm
Cable Ø up to 6mm
Case material PA (UL 94 V-0)
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 0.25 mm² (max)
Factory colour Blue
IP rating IP67
Leading contact (PE) No
Manufacturer part # 99 9133 462 12
max. cross section 0.25mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Binder
Nominal current 2A
Nominal current - rounded value 2A
Nominal voltage 60V
Number of pins 12
Total no. of pins 12
Type Micro DIN connector
