Binder 99 9115 50 05 Micro DIN Connector 5 Pins Sleeve Plug

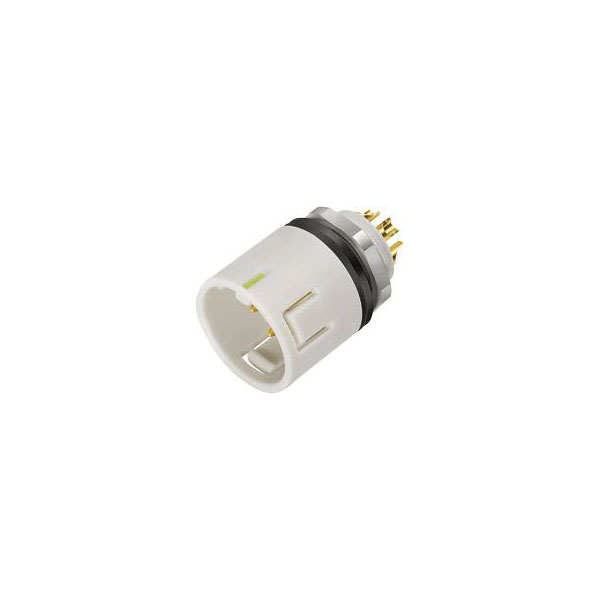

Image Representative of Range

Binder 99 9115 50 05 Micro DIN Connector 5 Pins Sleeve Plug

Binder
Standard range
Order Code:

01-4785

Brand: Binder MPN: 99 9115 50 05
Qty Unit Price (Ex VAT)
1+ £7.59
50+ £7.08
100+ £6.59
250+ £6.16
500+ £5.66
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

binder's Micro DIN connector, part number 99 9115 50 05, features a sleeve plug design with a total of five pins. This robust connector, with its compact size and reliable construction, is ideal for industrial and electronic applications. The package includes one piece (1 pc), making it suitable for precise and small-scale installations.
AWG 20
Case material PA (UL 94 V-0)
Connection Soldering
Connection angle 180°
Connector type Sleeve plug
Contact material Brass gold plated
Cross-section range 0.75 mm² (max)
Factory colour Red
IP rating IP67
Leading contact (PE) No
Manufacturer part # 99 9115 50 05
max. cross section 0.75mm²
Max. temperature +85°C
Min. temperature -25°C
Misc Attribute Binder
Nominal current 5A
Nominal current - rounded value 5A
Nominal voltage 125V
Number of pins 5
Total no. of pins 5
Type Micro DIN connector
