Binder 99 9114 450 05 Micro DIN Connector Straight 5 Pins 1pc

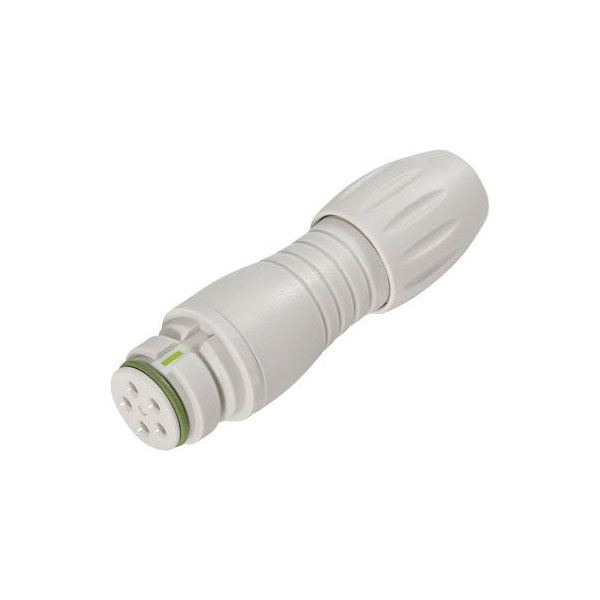

Image Representative of Range

Binder 99 9114 450 05 Micro DIN Connector Straight 5 Pins 1pc

Binder
Order Code:

01-4782

Brand: Binder MPN: 99 9114 450 05 EAN-13: 4064161272528

  • Quickly find another product in this range by Colour:

    Green Grey Red
Qty Unit Price (Ex VAT)
1+ £9.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
16 available to back orderBack-order availability date - 11/01/2026

The binder Micro DIN connector, model 99 9114 450 05, is a straight 5-pin connector. Known for its reliability, it is typically used in industrial and automation applications. The product is available as a single piece from binder and ensures secure electrical connections.
Connector Body Material PA (UL 94 V-0)
Termination Soldering
AWG 20
Cable Diameter 0.75mm²
Cable Ø up to 4mm
Colour Red
Connection angle 180°
Max. temperature +85°C
Min. temperature -40°C
Nominal Current 5A
Nominal current - rounded value 5A
Nominal Voltage 125V
Number of Ways 5
Total no. of pins 5
Type Connector, straight
