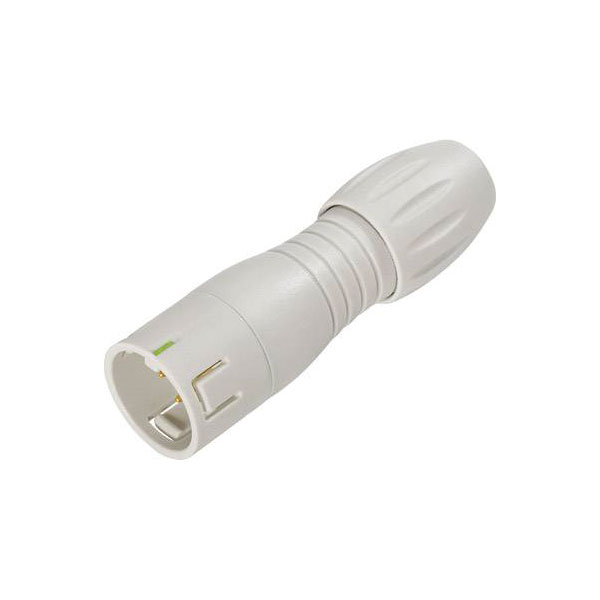

Binder 99 9113 400 05 Micro DIN Connector Plug Straight 5 Pins

Image Representative of Range

Binder 99 9113 400 05 Micro DIN Connector Plug Straight 5 Pins

Binder
Standard range
Order Code:

01-4779

Brand: Binder MPN: 99 9113 400 05
Qty Unit Price (Ex VAT)
1+ £5.92
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

Manufactured by binder, the 99 9113 400 05 is a straight micro DIN connector with a total of 5 pins. Key features include its compact design, ideal for use in confined spaces. It is typically used in electronic and data communication equipment.
AWG 20
Cable Ø (max.) 6mm
Cable Ø range 4 - 6 mm
Cable Ø up to 4mm
Case material PA (UL 94 V-0)
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 0.75 mm² (max)
Factory colour Grey
IP rating IP67
Leading contact (PE) No
Manufacturer part # 99 9113 400 05
max. cross section 0.75mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Binder
Nominal current 5A
Nominal current - rounded value 5A
Nominal voltage 125V
Number of pins 5
Total no. of pins 5
Type Micro DIN connector
