Binder 99 9106 460 03 Micro DIN Connector Straight 3 Pins 1pc

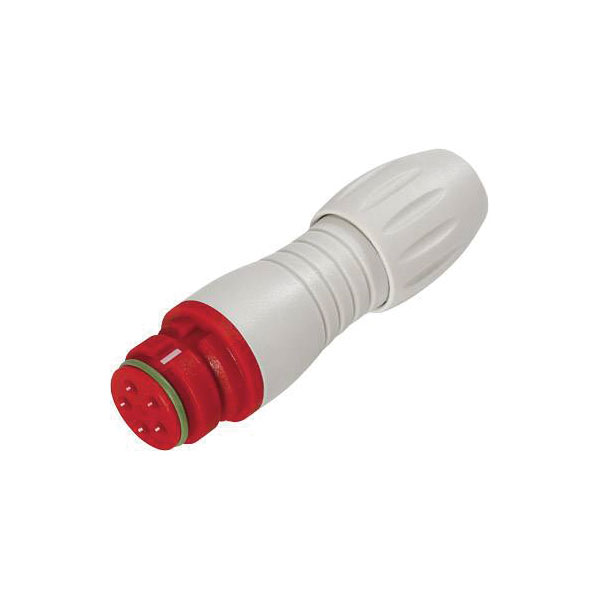

Image Representative of Range

Binder 99 9106 460 03 Micro DIN Connector Straight 3 Pins 1pc

Binder
Standard range
Order Code:

01-4774

Brand: Binder MPN: 99 9106 460 03
Qty Unit Price (Ex VAT)
1+ £5.92
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
17 in stock, despatched in 4 working days

binder's 99 9106 460 03 is a Micro DIN connector with a straight design and contains three pins. This connector is ideal for compact and precise connections in electronic equipment. It is typically used in industrial automation and control systems.
AWG 20
Cable Ø (max.) 6mm
Cable Ø range 4 - 6 mm
Cable Ø up to 4mm
Case material PA (UL 94 V-0)
Connection Soldering
Connection angle 180°
Connector type Connector, straight
Contact material Bronze, gold plated
Cross-section range 0.75 mm² (max)
Factory colour Blue
IP rating IP67
Leading contact (PE) No
Manufacturer part # 99 9106 460 03
max. cross section 0.75mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Binder
Nominal current 7A
Nominal current - rounded value 7A
Nominal voltage 250V
Number of pins 3
Total no. of pins 3
Type Micro DIN connector
