Binder 99 9105 400 03 Micro DIN Plug Straight 3 Pins 1pc

Image Representative of Range

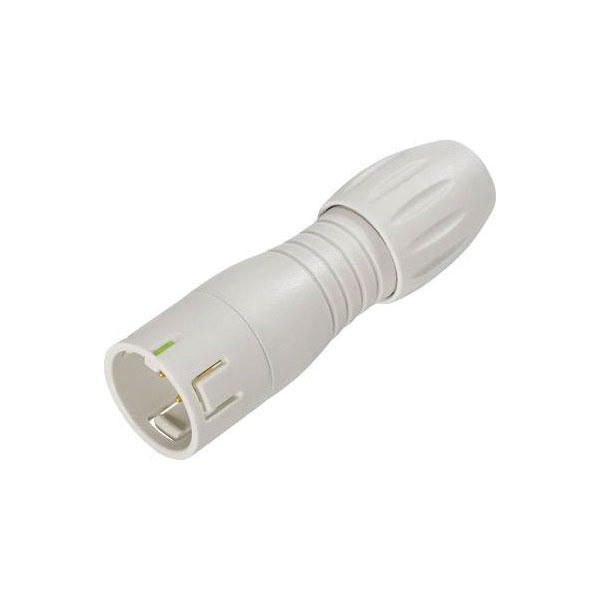

Binder 99 9105 400 03 Micro DIN Plug Straight 3 Pins 1pc

Binder
Standard range
Order Code:

01-4770

Brand: Binder MPN: 99 9105 400 03
Qty Unit Price (Ex VAT)
1+ £4.72
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

The binder Micro DIN connector, model 99 9105 400 03, features a plug with a straight design and contains three pins. Manufactured by binder, this connector is ideal for applications requiring compact and efficient electrical connections with one piece availability. Typical uses include industrial automation and electronic communication devices.
AWG 20
Cable Ø (max.) 6mm
Cable Ø range 4 - 6 mm
Cable Ø up to 4mm
Case material PA (UL 94 V-0)
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 0.75 mm² (max)
Factory colour Grey
IP rating IP67
Leading contact (PE) No
Manufacturer part # 99 9105 400 03
max. cross section 0.75mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Binder
Nominal current 7A
Nominal current - rounded value 7A
Nominal voltage 250V
Number of pins 3
Total no. of pins 3
Type Micro DIN connector
