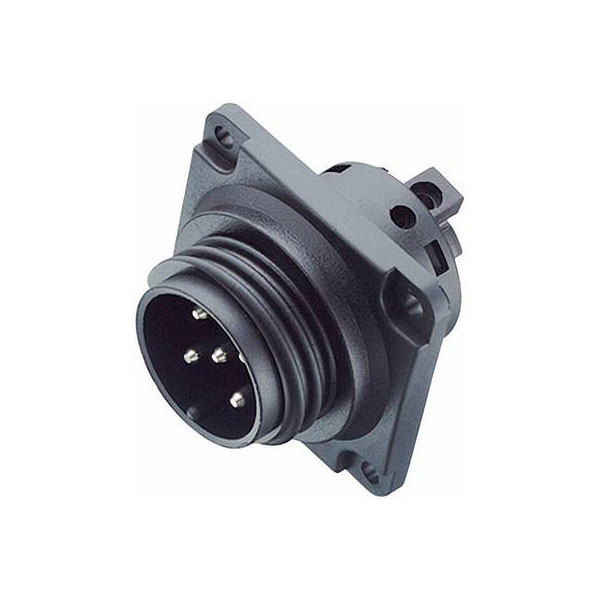

Image Representative of Range

Binder 99-0739-00-24 M Panel Mnt 24 Pin with Solder Termination

MPN: 99-0739-00-24
Brand: Binder
EAN-13: 2050001612946
Order Code: 55-0709

RoHS Compliant
Free UK shipping available

View Full Product Range (2)

Inc VAT

Qty	Was	Unit Price (Ex VAT)
1+	£20.29	£20.15

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 14 in stock

Product Range

Number of poles: 24
Connector locking system: Screw
Termination: solder
Wire gauge (mm): 0,25 mm²
Wire gauge (AWG): 24
Degree of protection: IP 65
Mechanical operation: >500 mating cycles
Upper temperature: +100 °C
Lower temperature: -40 °C
Rated voltage: 125 V
Rated impulse voltage: 2500 V
Pollution degree: 3
Overvoltage category: III
Material group: III
Rated current (40°C): 3 A
Volume resistivity: ≤ 3 mΩ
Material of contact: CuZn (brass)
Contact plating: Au (gold)
Material of contact body: PA (UL 94 HB)
Material of housing: PA (UL 94 V-0)

Type	Bullet connector
Number of Contacts	4
Connector Size	18.5 mm dia
Colour	Black
IP Rating	IP65
Maximum Temperature	+80°C
Min. temperature	-40°C
Number of pins	24
