Binder 99 0536 24 05 Female 4-6mm Angle 5 Pin with Wire Clamp Terminal

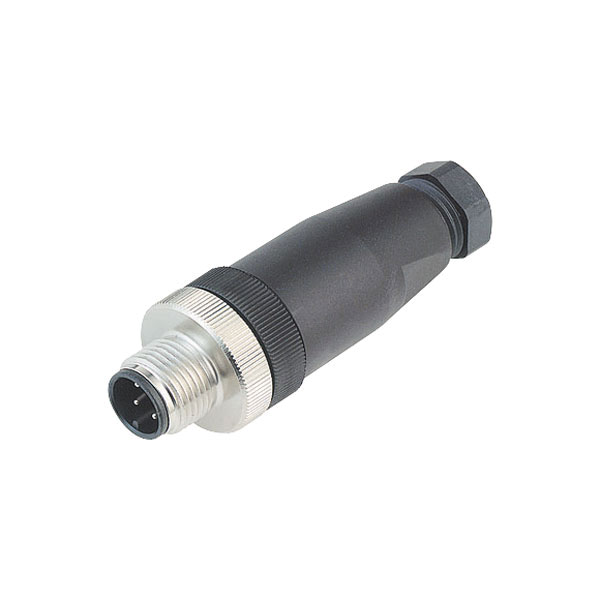

Image Representative of Range

Binder 99 0536 24 05 Female 4-6mm Angle 5 Pin with Wire Clamp Terminal

Binder
Order Code:

55-0392

Brand: Binder MPN: 99-0536-24-05 EAN-13: 2050000035951
Qty Unit Price (Ex VAT)
1+ £14.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
29 in stock, despatched in 4 working days


  • Number of poles: 5
  • Connector locking system: Screw
  • Termination: wire clamp
  • Wire gauge (mm): 0,50 mm²
  • Wire gauge (AWG): 20
  • Cable outlet: 4 - 6 mm
  • Degree of protection: IP 67
  • Mechanical operation: >100 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 3
  • Overvoltage category: II
  • Material group: III
  • Rated current (40°C): 4 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuSn (bronze)
  • Contact plating: Au (gold)
  • Material of contact body: PA
  • Material of housing: zinc diecasting, nickel plated, PBT
Number of Contacts 5
Gender Female
Cable Diameter 4 to 6mm
Contact Material CuSn
Contact Plating Gold
Current Rating 4A
IP Rating IP67
Nominal Voltage 125V
Termination Clamp
