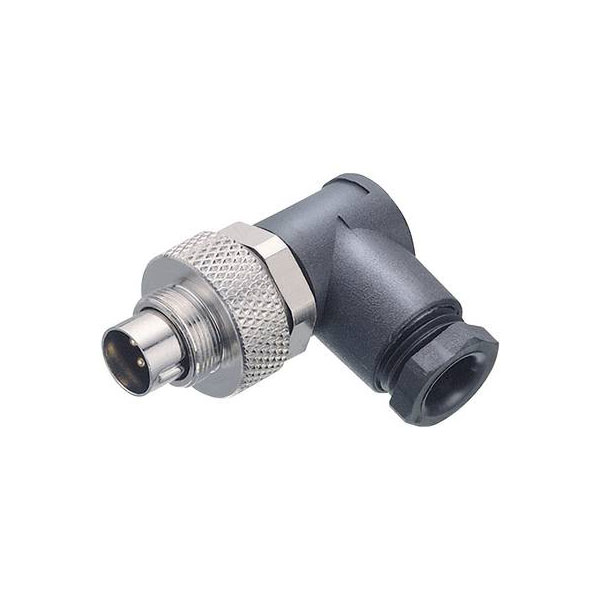

Binder 99-0413-70-05 Male 3.5-5mm Angle 5 Pin Cable Mount with Solder Terminal

A right angle 5-pin male subminiature cable mount M9 screw connector with a 3.5 to 5mm outlet and solder terminals.

• Number of poles: 5
• Connector locking system: Screw
• Termination: solder
• Wire gauge (mm): 0,25 mm²
• Wire gauge (AWG): 24
• Cable outlet: 3,5 - 5 mm
• Degree of protection: IP 67
• Mechanical operation: >500 mating cycles
• Upper temperature: +85 °C
• Lower temperature: -40 °C
• Rated voltage: 125 V
• Rated impulse voltage: 1500 V
• Pollution degree: 1
• Overvoltage category: II
• Material group: III
• Rated current (40°C): 3 A
• Volume resistivity: ≤ 3 mΩ
• Material of contact: CuZn (brass)
• Contact plating: Au (gold)
• Material of contact body: PBT (UL 94 V-0)
• Material of housing: PA (UL 94 VH-B)

Type	Cable Plug
Number of Contacts	5
Connector Size	18.5 mm dia
Gender	Male
Cable Diameter	3.5 to 5mm
Contact Material	Brass
Contact Plating	Gold
Current Rating	3A
IP Rating	IP67
Mounting Type	Cable
Nominal Voltage	125V
Termination	Solder
