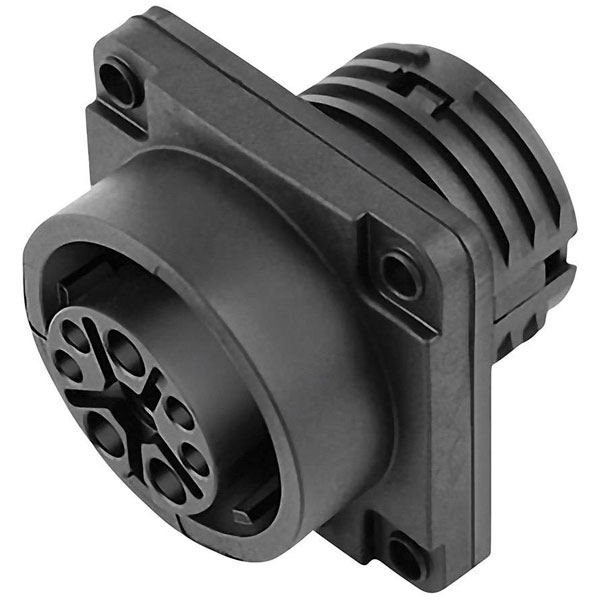

Binder 712 99-0414-10-05 Bullet Connector Straight 5 Pins

The binder 99-0414-10-05 bullet connector is a straight connector in the 712 series with a total of 5 pins. It is manufactured by binder and is primarily used for reliable electrical connections in industrial settings. This connector is designed to ensure secure and efficient performance in various demanding applications.

Type	Connector, straight
Number of Contacts	5
Connector Size	18.5 mm dia
Cable Ø (max.)	5mm
Cable Ø range	3.5 - 5mm
Cable Ø up to	3.5mm
Case Material	CuZn
Colour	Silver
Connection	Soldering
Connection Angle	180°
Contact Material	Brass
Cross-section range	0.14 mm² (max)
Current Rating	3A
IP Rating	IP67
max. cross section	0.14mm²
Maximum Temperature	+105°C
Min. temperature	-40°C
Nominal Voltage	175V
Number of pins	5
Series	712
Termination	Screw
