Binder 09-3442-433-05 Female 5 Pin with Single Wires and PG9 Fixing Thread

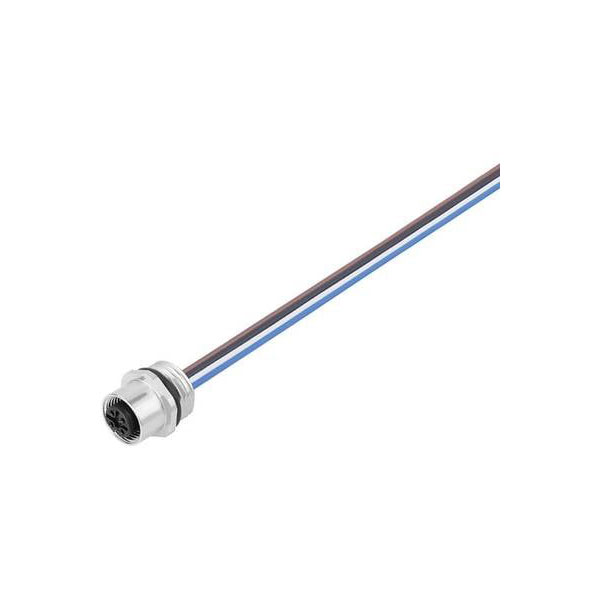

Image Representative of Range

Binder 09-3442-433-05 Female 5 Pin with Single Wires and PG9 Fixing Thread

Binder
Order Code:

55-0743

Brand: Binder MPN: 09-3442-433-05 EAN-13: 2050001613479
Qty Unit Price (Ex VAT)
1+ £18.70
10+ £18.22
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
64 in stock, despatched in 4 working days

A female 5-pin IP67 silver power panel mount screw connector with single wire terminal and PG9 fixing thread.
  • Number of poles: 5
  • Termination: wires
  • Wire gauge (AWG): 18
  • Degree of protection: IP 67
  • Mechanical operation: >100 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 3
  • Overvoltage category: II
  • Material group: II
  • Rated current (40°C): contact 1-4 8A, contact 5 2A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact body: PA
  • Material of housing: zinc diecasting, nickel plated
Number of Contacts 5
Gender Female
IP Rating IP67
Contact Plating Nickel
Nominal Voltage 125V
