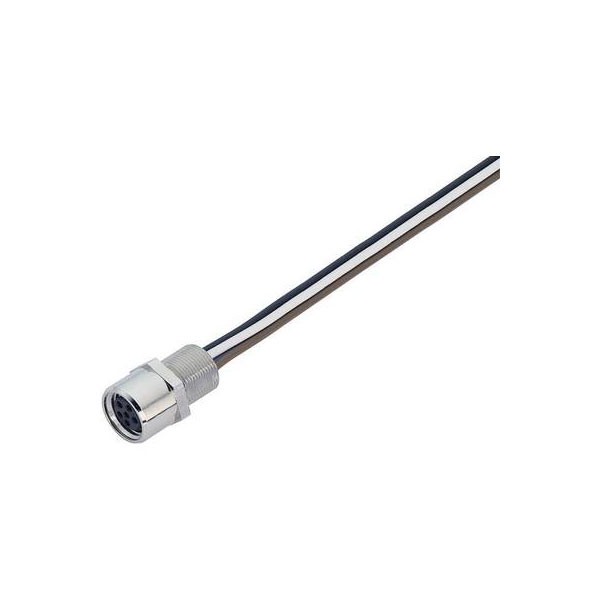

Image Representative of Range

Binder 09-3390-00-04 Female 4 Pin with Single Wires Terminal

MPN: 09-3390-00-04
Brand: Binder
EAN-13: 2050000992513
Order Code: 55-1428

RoHS Compliant
Free UK shipping available

View Full Product Range (7)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£10.93

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 74 in stock

Product Range
Quick Quote

Number of poles: 4
Connector locking system: Screw
Termination: Single leads 0.25
Wire gauge (mm): 0,25 mm²
Wire gauge (AWG): 24
Degree of protection: IP 67
Mechanical operation: >100 mating cycles
Upper temperature: +85 °C
Lower temperature: -40 °C
Rated voltage: 30 V
Rated impulse voltage: 800 V
Pollution degree: 3
Overvoltage category: II
Material group: II
Rated current (40°C): 4 A
Volume resistivity: ≤ 3 mΩ
Material of contact: CuSn (bronze)
Contact plating: Au (gold)
Material of contact body: PA
Material of housing: CUZn (brass nickel plated)

Type	Sensor/actuator built-in connector
Number of Contacts	4
Connector Size	20 mm dia
Gender	Female
IP Rating	IP67
Maximum Temperature	+85°C
Min. temperature	-25°C
