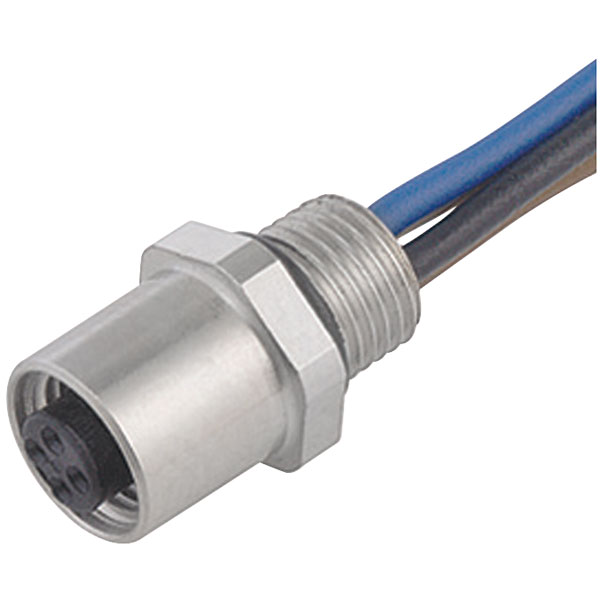

Binder 09-3112-00-04 Female 4 Pin with Single Wires Terminal 4-x .14mm2

MPN: 09-3112-00-04
Brand: Binder
EAN-13: 2050000993022
Order Code: 55-1423

RoHS Compliant
Free UK shipping available

View Full Product Range (7)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£13.28

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 32 in stock

Product Range
Quick Quote

Number of poles: 4
Connector locking system: Screw
Termination: assembled with wires
Wire gauge (mm): 0,14 mm²
Wire gauge (AWG): 26
Degree of protection: IP 67
Mechanical operation: >100 mating cycles
Upper temperature: +80 °C
Lower temperature: -25 °C
Rated voltage: 60 V
Rated impulse voltage: 800 V
Pollution degree: 3
Overvoltage category: II
Material group: I
Rated current (40°C): 1 A
Volume resistivity: ≤ 3 mΩ
Material of contact: CuSn (bronze)
Contact plating: Au (gold)
Material of contact body: PA
Material of housing: CUZn (brass nickel plated)

Cable data

temperature range cable movable c from / temperature range cable movable c to: -5 / 80
temperature range cable fixed c from / temperature range cable fixed c to: -25 / 80
