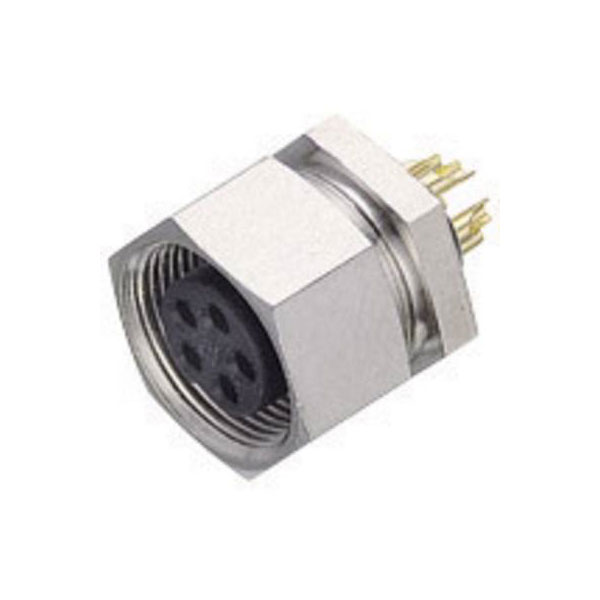

Binder 09-0482-00-08 Female 8 Pin Panel Mount Screw with Solder Terminal

Image Representative of Range

Binder 09-0482-00-08 Female 8 Pin Panel Mount Screw with Solder Terminal

Binder
Order Code:

55-1166

Brand: Binder MPN: 09-0482-00-08 EAN-13: 2050000422300
Qty Was Unit Price (Ex VAT)
1+ £11.01 £10.03
10+ £10.54 £9.61
50+ £10.19 £9.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

Subminiature panel mount screw connectors from the Binder 711 Series.


  • Number of poles: 8
  • Connector locking system: Screw
  • Termination: solder
  • Wire gauge (mm): 0,14 mm²
  • Wire gauge (AWG): 26
  • Degree of protection: IP 40
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 1
  • Overvoltage category: II
  • Material group: III
  • Rated current (40°C): 1 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuSn (bronze)
  • Contact plating: Au (gold)
  • Material of contact body: PA (UL 94 V-0)
  • Material of housing: CUZn (brass nickel plated)
Number of Contacts 8
Gender Female
Contact Material CuSn
Contact Plating Gold
Current Rating 1A
IP Rating IP40
Mounting Type Panel
Nominal Voltage 125V
Termination Solder
