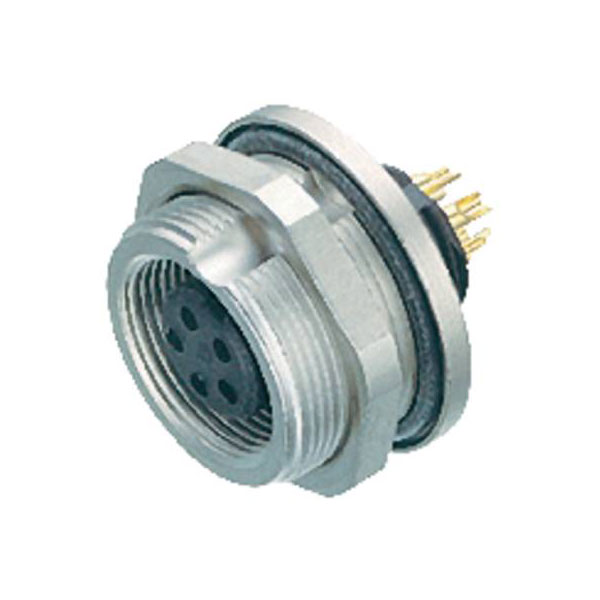

Binder 09-0428-80-08 Female 8 Pin Front Fastening with Solder Terminal

Image Representative of Range

Binder 09-0428-80-08 Female 8 Pin Front Fastening with Solder Terminal

Binder
MPN
09-0428-80-08
Brand
Binder
EAN-13
2050001613240
Order Code
55-1201
View Full Product Range (3)
Qty Unit Price (Ex VAT)
1+ £16.36
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Despatched within 4 working days - 16 in stock


  • Number of poles: 8
  • Connector locking system: Screw
  • Termination: solder
  • Wire gauge (mm): 0,14 mm²
  • Wire gauge (AWG): 26
  • Degree of protection: IP 67
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 1
  • Overvoltage category: II
  • Material group: III
  • Rated current (40°C): 1 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuSn (bronze)
  • Contact plating: Au (gold)
  • Material of contact body: PA (UL 94 V-0)
  • Material of housing: CUZn (brass nickel plated)
Type Bullet connector
Number of Contacts 8
Connector Size 20 mm dia
Gender Female
IP Rating IP67
Maximum Temperature +80°C
Min. temperature -40°C
Number of pins 8
