Binder 09-0097-00-05 Male 5 Pin Panel Mount Screw with Solder Terminal

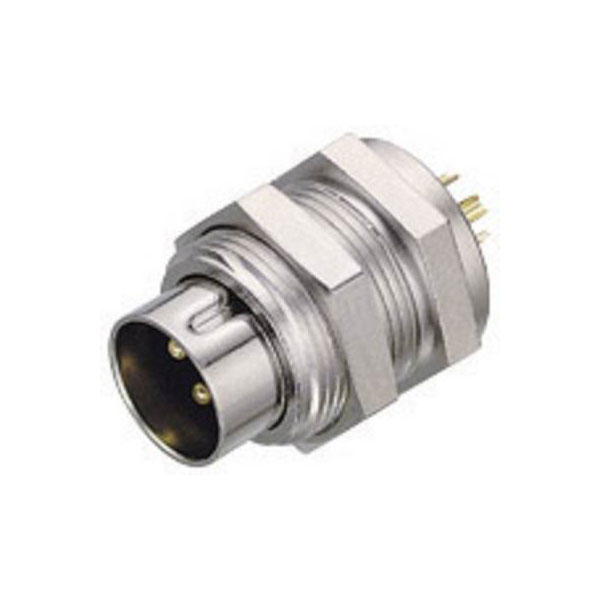

Image Representative of Range

Binder 09-0097-00-05 Male 5 Pin Panel Mount Screw with Solder Terminal

Binder
Order Code:

55-1161

Brand: Binder MPN: 09-0097-00-05 EAN-13: 2050000422232
Qty Unit Price (Ex VAT)
1+ £8.24
10+ £7.92
50+ £7.74
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

Subminiature panel mount screw connectors from the Binder 711 Series.


  • Number of poles: 5
  • Connector locking system: Screw
  • Termination: solder
  • Wire gauge (mm): 0,25 mm²
  • Wire gauge (AWG): 24
  • Degree of protection: IP 40
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 1
  • Overvoltage category: II
  • Material group: III
  • Rated current (40°C): 3 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuZn (brass)
  • Contact plating: Au (gold)
  • Material of contact body: PA (UL 94 V-0)
  • Material of housing: CUZn (brass nickel plated)
Current Rating 3A
IP Rating IP40
Contact Material Brass
Contact Plating Gold
Gender Male
Mounting Type Panel
Number of Ways 5
Termination Method Solder
Voltage Rating (AC) 125V
