Binder 083109000000 HEC Bullet Connector Cap Harsh Environment Plug

Image Representative of Range

Binder 083109000000 HEC Bullet Connector Cap Harsh Environment Plug

Binder
Standard range
Order Code:

11-4744

Brand: Binder MPN: 08 3109 000 000 EAN-13: 2050002722231
Qty Unit Price (Ex VAT)
1+ £9.08
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
23 in stock, despatched in 4 working days

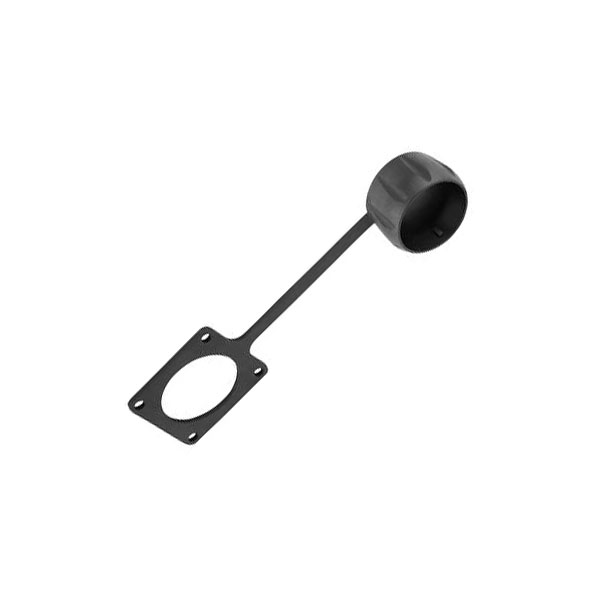

The Bullet connector protective cap by binder is a straight plug designed for the HEC series of round connectors. It highlights durability and secure protection in demanding environments. This component is typically used in industrial and outdoor applications to safeguard electrical connections.
Type Bullet connector protective cap
Cable Ø (max.) 4mm
Cable Ø range 3 - 4 mm
Cable Ø up to 3mm
Case material PA (UL 94 V-0)
Connection angle 180°
Connector type Plug, straight
Cross-section range 0.14 mm² (max)
Factory colour Black
Length 100mm
Manufacturer part # 08 3109 000 000
max. cross section 0.14mm²
Max. temperature +95°C
Min. temperature -40°C
Misc Attribute Binder
Nominal current 1A
Nominal current - rounded value 1A
Nominal voltage 125V
Seal Bayonet
Series HEC
