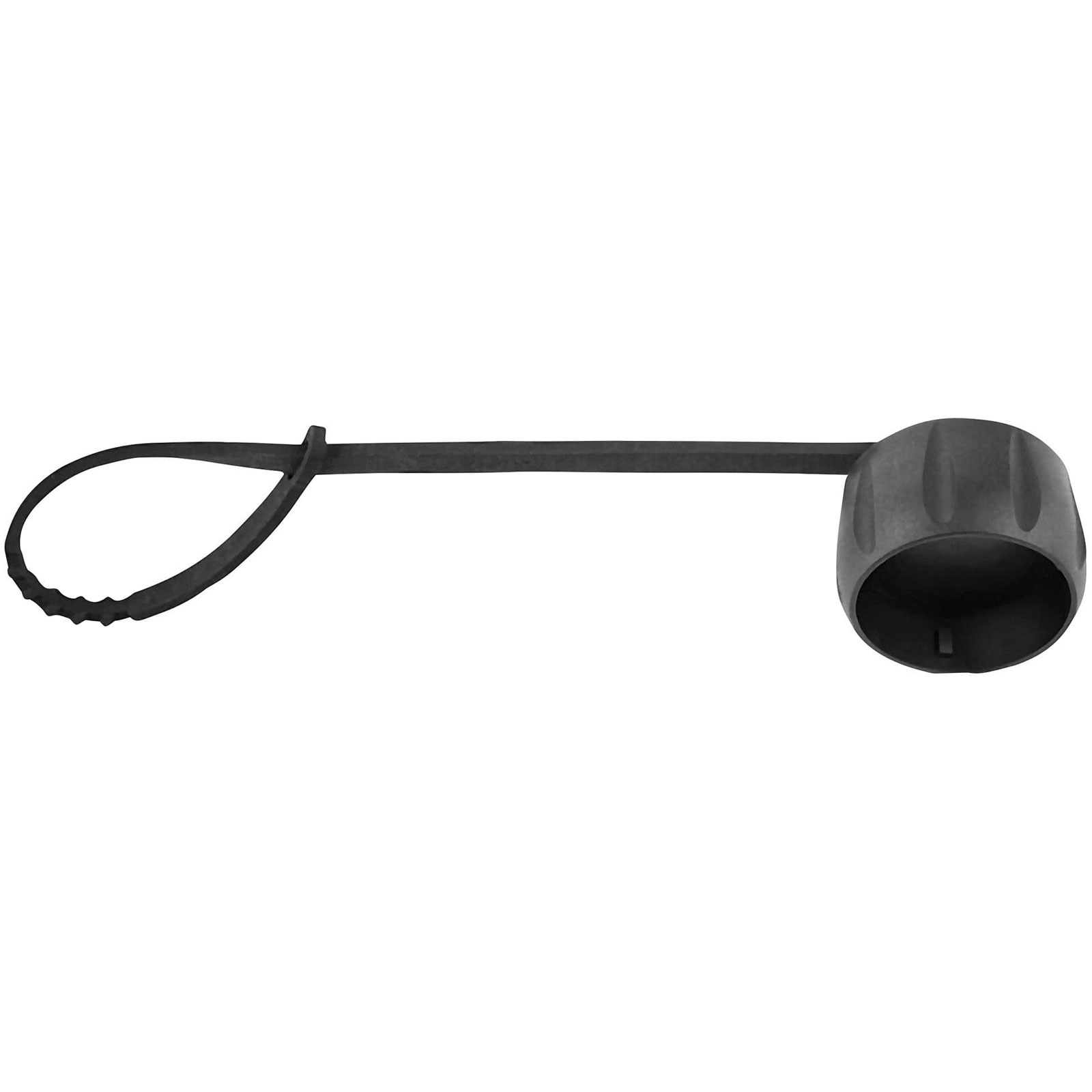

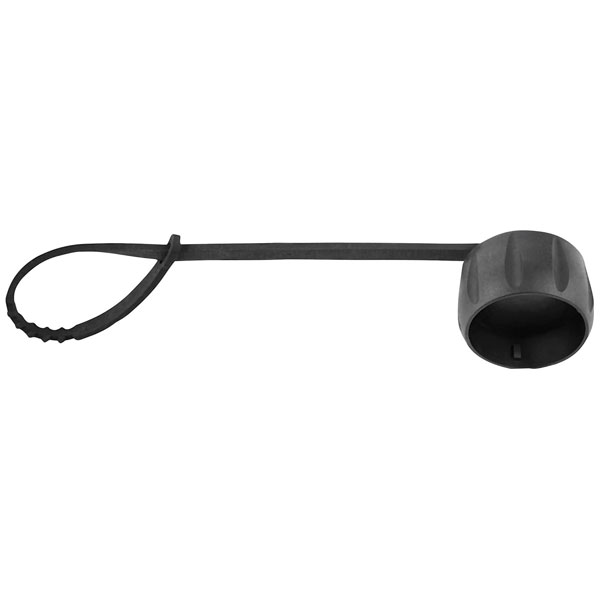

Binder 083107000000 HEC Bullet Connector Cap Protective 1 Piece

The binder Bullet Connector Protective Cap, part number 08 3107 000 000, is designed for the HEC series of round connectors. This protective cap offers enhanced durability and protection in harsh environments. It is typically used in industrial and outdoor applications to safeguard connectors from dirt, moisture, and damage.

Type	Bullet connector protective cap
Cable Ø (max.)	4mm
Cable Ø range	3 - 4mm
Cable Ø up to	3mm
Case Material	PA (UL 94 V-0)
Colour	Black
Connection Angle	180°
Cross Section	0.25 mm² (max)
IP Rating	IP68, IP69K
Length	165mm
max. cross section	0.25mm²
Maximum Temperature	+85°C
Min. temperature	-40°C
Nominal Current	3A
Nominal current - rounded value	3A
Nominal Voltage	125V
Seal	Bayonet
Series	HEC
