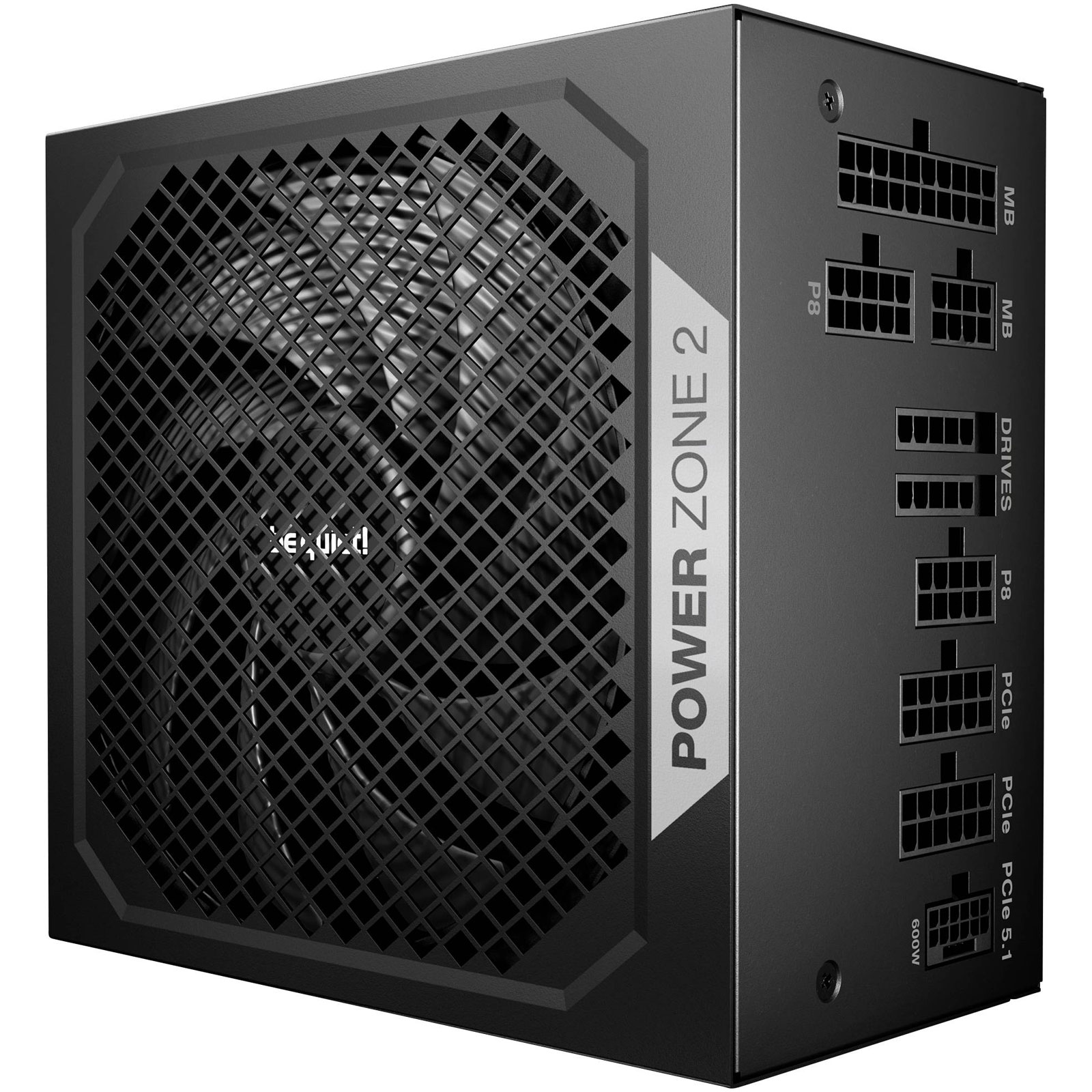

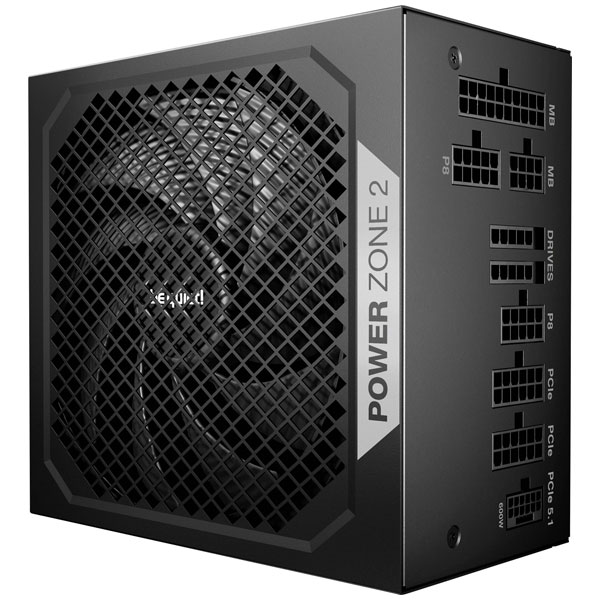

BeQuiet BP008EU POWER ZONE 2 1000W ATX 80 PLUS Platinum PC Power Supply Unit

BeQuiet BP008EU is a technically advanced POWER ZONE 2 1000W ATX 80 PLUS Platinum PC power supply unit, engineered with precision to meet demanding energy efficiency standards. This high-performance power supply provides an impressive 1000 watts of power delivery, ensuring stable and reliable operation for high-end computing systems. Its 80 PLUS Platinum certification guarantees optimal energy efficiency, significantly reducing energy consumption and heat output, making it an ideal choice for environmentally conscious designs. The unit is suited to power-intensive applications, including gaming rigs, professional workstations, and servers, providing the necessary support for their advanced components and ensuring sustained performance under load. It is a versatile solution compatible with a range of ATX-based systems, making it a staple in technical environments where reliability and efficiency are paramount.

Power Rating	751 W -
+12 V/DC	83.3A
+5V / DC	3A
-12V / DC	0.5A
3.3V DC	20A
4-pin Molex	1
5 V DC	20A
5-pin SATA	7
6-pin PCIe	3
80 PLUS certification	80 PLUS Platinum
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
ATX version	3.1
Bearing technology	Rifle
Cable ties included	Yes
Cabling type	Fully-Modular
Colour	Black
Combined power (+12V)	999.6 W
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Combined power (+5Vsb)	15 W
Combined power (-12V)	6 W
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Cooling	Active
Cooling type	Active
CPU P4 connector (4-pin)	1
CPU power cable length	70cm
CPU power connector (4+4 pin)	Yes
Depth	160mm
Dimensions	(W x H x D) 150 x 86 x 160 mm
Efficiency	92.6%
EPS power connector (8-pin)	Yes
EPS version	2.92
Fan diameter	14 cm
Height	86mm
Hold time	22.7 ms
Manual	Yes
Manual languages	German, English, Spanish, French, Polish, Russian, Ukrainian
Max output current (+12V)	83.3 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Max output current (-12V)	0.5 A
Maximum input current (@110V)	13 A
Maximum input current (@220V)	6.5 A
Mean time between failures (MTBF)	100000 h
Motherboard power cable length	60cm
Motherboard power connector	20+4 pin ATX
Noise Level	27.2 dB
Number of +12V rail(s)	1
Number of fans	1 fan(s)
Number of SATA power connectors	7
On/off switch	Yes
Operating relative humidity (H-H)	0 - 85%
Operating temperature (T-T)	0 - 40 °C
Operating Voltage	100 - 240 V
Package depth	328mm
Package height	102mm
Package type	Box
Package weight	3.28 kg
Package width	248mm
PCI Express power cable length	60cm
PCI Express power connectors (16-pin)	1
PCI Express power connectors (6+2 pin)	3
Peak power	1070 W
Peripheral (Molex) power cable length	1000mm
Peripheral (Molex) power connectors (4-pin)	1
Power Factor	0.98
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Power supply	100 - 240V
Power supply unit (PSU) form factor	ATX
Product colour	Black
Product Type	PC power supply unit
Products per shipping (inner) case	6 pc(s)
PSU output power	1000W
Purpose	PC
SATA power cable length	550,700,850,1000 mm
Screws included	Yes
Shipping (inner) case gross weight	19.6 kg
Shipping (inner) case height	34.6cm
Shipping (inner) case length	65.1cm
Shipping (inner) case width	28.2cm
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-40 - 70 °C
Sustainability certificates	ENERGY STAR, ErP, Triman
Total power	1000 W
Type	PC power supply unit
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Weight	2.82kg
Width	150mm
