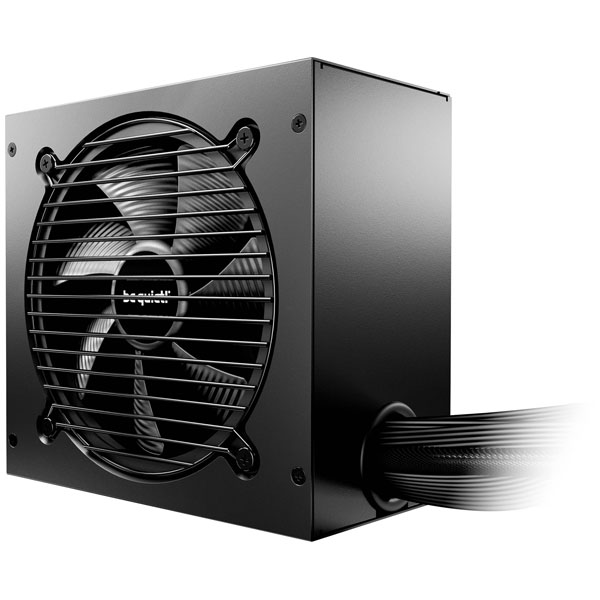

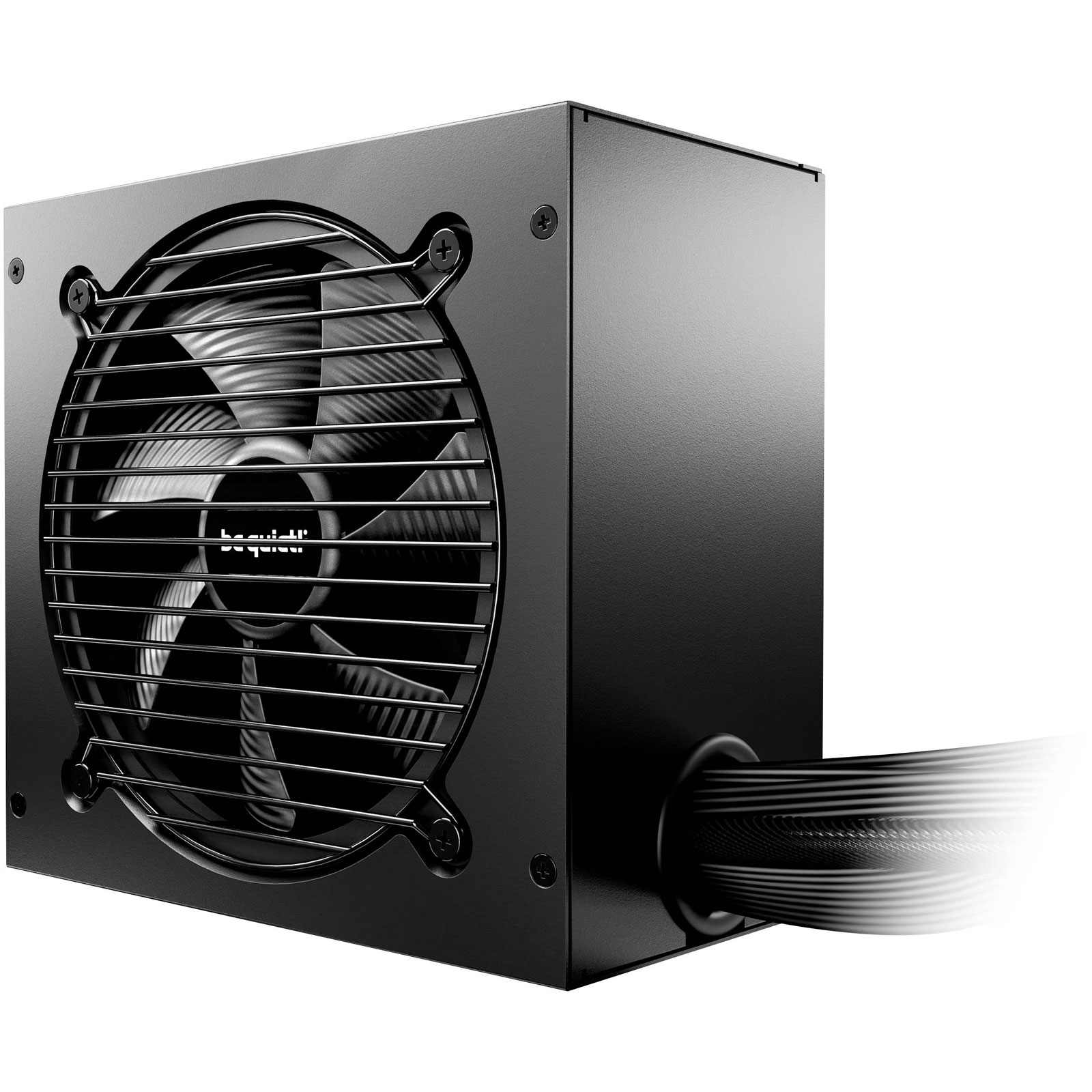

BeQuiet BP005EU is an advanced power supply unit designed for high-performance computing needs, offering a total power output of 1000 W and certified with 80 PLUS Gold efficiency. This PC power supply unit, known as PURE POWER 12, integrates seamlessly into ATX systems, providing reliable power distribution with optimised efficiency for demanding computing environments. Its robust design supports a variety of engineering applications, including both gaming rigs and professional workstations where stable and efficient power is critical. Utilising its high efficiency, it minimises energy loss, making it not only effective for intensive computational tasks but also conserving on power load, making it an ideal choice for both performance desktops and environmental sustainability initiatives.
| Power Rating |
751 W - |
| +5V / DC |
3A |
| -12V / DC |
0.3A |
| 3.3V DC |
22A |
| 4-pin Molex |
1 |
| 5 V DC |
22A |
| 5-pin SATA |
6 |
| 6-pin PCIe |
3 |
| 80 PLUS certification |
80 PLUS Gold |
| AC input frequency |
50/60 Hz |
| AC input voltage |
110 - 240 V |
| ATX version |
3.1 |
| Bearing technology |
Rifle |
| Cable tie(s) included |
Yes |
| Cables included |
AC |
| Cabling type |
Non-Modular |
| Colour |
Black |
| Combined power (+12V) |
1000 W |
| Combined power (+3.3V) |
120 W |
| Combined power (+5V) |
120 W |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus |
| Cooling |
Active |
| Cooling type |
Active |
| CPU power cable length |
60cm |
| CPU power connector (4+4 pin) |
Yes |
| Depth |
160mm |
| Dimensions |
(W x H x D) 86 x 150 x 160 mm |
| Efficiency |
90.6% |
| EPS version |
2.92 |
| Fan diameter |
12 cm |
| Height |
150mm |
| Hold time |
17.82 ms |
| Max output current (+12V1) |
83.4 A |
| Max output current (+3.3V) |
22 A |
| Max output current (+5V) |
22 A |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Maximum input current (@110V) |
12 A |
| Maximum input current (@220V) |
6 A |
| Mean time between failures (MTBF) |
100000 h |
| Motherboard power cable length |
55cm |
| Motherboard power connector |
20+4 pin ATX |
| Noise Level |
31.6 dB |
| Number of +12V rail(s) |
1 |
| Number of fans |
1 fan(s) |
| Number of SATA power connectors |
6 |
| On/off switch |
Yes |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating Voltage |
100 - 240 V |
| Package depth |
320mm |
| Package height |
210mm |
| Package weight |
3.2 kg |
| Package width |
133mm |
| PCI Express power cable length |
60cm |
| PCI Express power connectors (12-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
3 |
| Peak power |
1050 W |
| Peripheral (Molex) power cable length |
800mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Power Factor |
0.98 |
| Power Factor Correction (PFC) type |
Active |
| Power supply |
110 - 240V |
| Power supply unit (PSU) form factor |
ATX |
| Product colour |
Black |
| Product Type |
PC power supply unit |
| Products per shipping (inner) case |
4 pc(s) |
| PSU output power |
1000W |
| Purpose |
PC |
| SATA power cable length |
500,650,800,950 mm |
| Screws included |
Yes |
| Shipping (inner) case height |
34cm |
| Shipping (inner) case length |
56cm |
| Shipping (inner) case net weight |
13.9 kg |
| Shipping (inner) case width |
24cm |
| Storage relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Sustainability certificates |
ENERGY STAR, ErP, Triman |
| Total power |
1000 W |
| Type |
PC power supply unit |
| Warranty period |
10 year(s) |
| Weight |
2.8kg |
| Width |
86mm |
