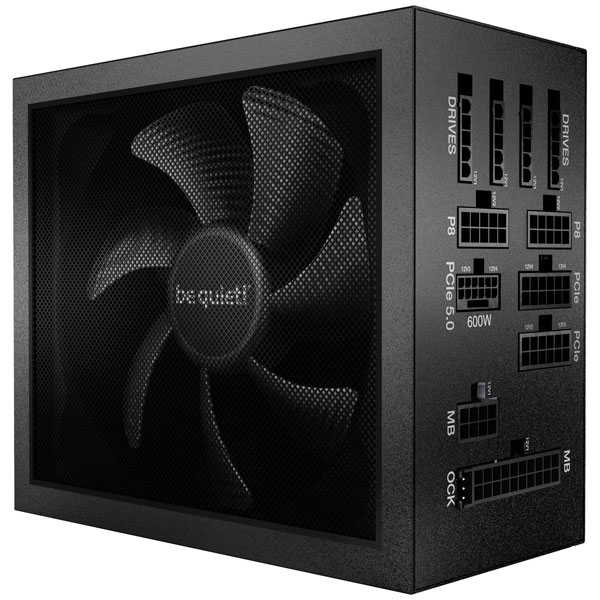

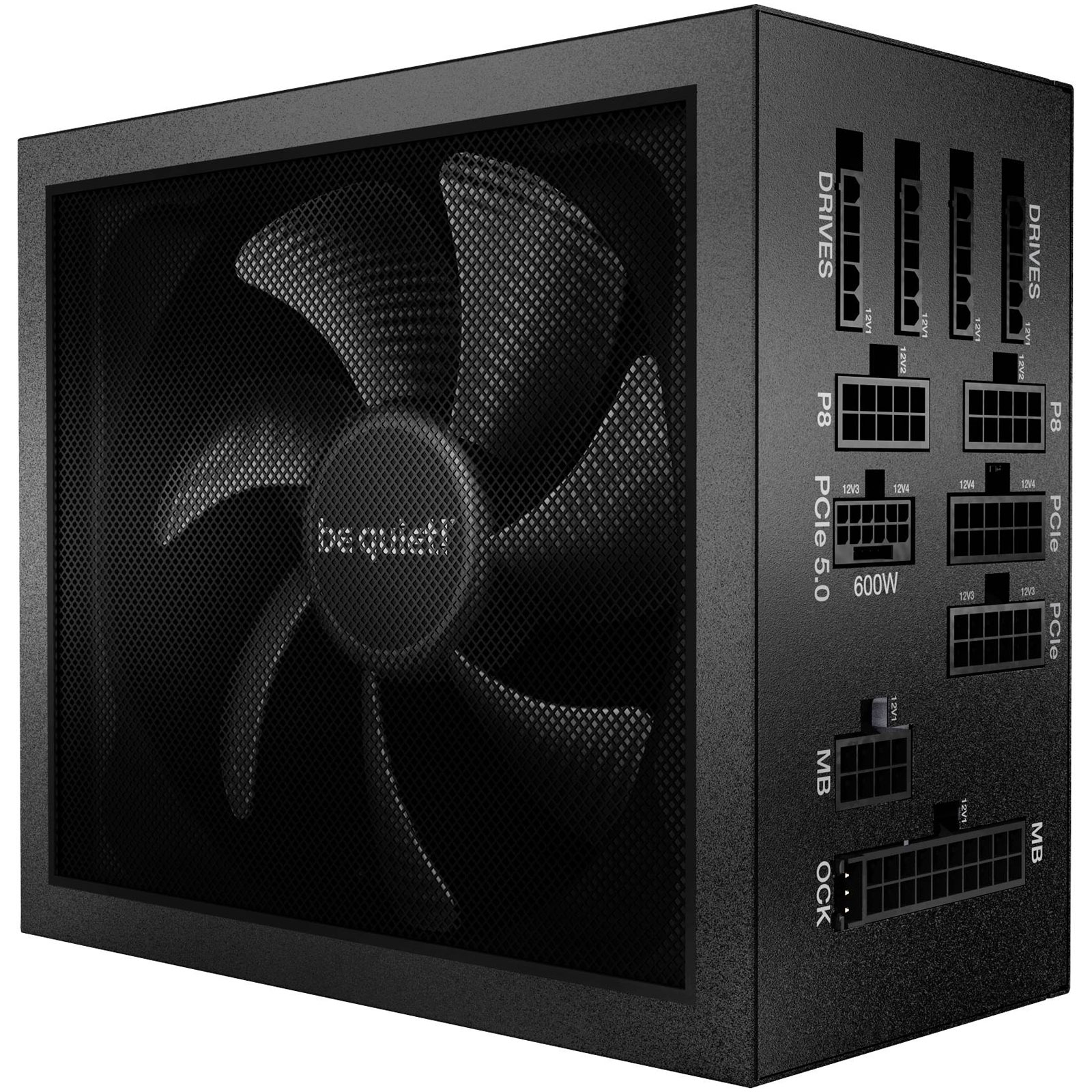

BeQuiet BN333, Dark Power 13 750 W ATX 80 PLUS Titanium, is a high-performance power supply unit designed for advanced computing systems. Engineered for efficiency, this PSU achieves the prestigious 80 PLUS Titanium certification, ensuring minimal energy loss and optimum power delivery with above 94% efficiency. It is ideal for powering high-end gaming PCs, workstations, or servers, where stability and reliable power distribution are paramount. Utilising advanced modular cabling, the BN333 allows for seamless integration into diverse PC configurations, reducing clutter and enhancing airflow. Additionally, its robust design supports overclocking and high power demands common in computationally intensive environments.
| Power Rating |
501 - 750 W |
| +5V / DC |
3A |
| 12V / DC |
30A |
| -12V / DC |
0.5A |
| 20+4 Pin |
1 |
| 3.3V DC |
22A |
| 5 V DC |
22A |
| 6-pin PCIe |
4 |
| 80 PLUS certification |
80 PLUS Titanium |
| 8-pin 12 V |
1 |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| ATX power connector (20+4 pin) |
Yes |
| ATX version |
3.0 |
| Bearing technology |
FDB |
| Built-in display |
No |
| Cable tie(s) included |
Yes |
| Cabling type |
Fully-Modular |
| Certification |
BSMI , CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman |
| Colour |
Black |
| Combined power (+12V) |
744 W |
| Combined power (+3.3V) |
110 W |
| Combined power (+5V) |
110 W |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
6 W |
| Compliance certificates |
RoHS, WEEE |
| Cooling type |
Active |
| CPU power connector (4+4 pin) |
Yes |
| Depth |
86mm |
| Design Height |
175mm |
| Dimensions |
(W x H x D) 150 x 175 x 86 mm |
| ECC |
Yes |
| Efficiency |
93.8% |
| EPS version |
2.92 |
| Fan diameter |
13.5 cm |
| Fan location |
Top |
| Fan speed |
0 - 2100 RPM |
| Floppy disk drive connector |
No |
| Height |
175mm |
| Hold time |
22.6 ms |
| Illumination |
No |
| Input Current |
9 A |
| Max output current (+12V1) |
25 A |
| Max output current (+12V2) |
25 A |
| Max output current (+12V3) |
30 A |
| Max output current (+12V4) |
30 A |
| Max output current (+3.3V) |
22 A |
| Max output current (+5V) |
22 A |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.5 A |
| Maximum input current (@110V) |
4.5 A |
| Maximum input current (@220V) |
9 A |
| Motherboard power cable length |
60cm |
| Motherboard power connector |
20+4 pin ATX |
| Noise Level |
18.8 dB |
| Number of fans |
1 fan(s) |
| Number of PATA power connectors |
3 |
| Number of SATA power connectors |
12 |
| Operating Voltage |
100 - 240 V |
| Package depth |
350mm |
| Package height |
270mm |
| Package type |
Box |
| Package weight |
4.23 kg |
| Package width |
120mm |
| Pallet gross weight (air) |
18.2 kg |
| PCI Express connector |
Yes |
| PCI Express power connectors (6+2 pin) |
4 |
| PCI Express power connectors (8-pin) |
1 |
| Peak power |
850 W |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Power Factor |
0.98 |
| Power Factor Correction (PFC) type |
Active |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power supply unit (PSU) form factor |
ATX |
| Product colour |
Black |
| Product Type |
PC power supply unit |
| PSU output power |
750W |
| Purpose |
PC |
| SATA power cable length |
1050mm |
| Shipping (inner) case height |
36.8cm |
| Shipping (inner) case length |
50.4cm |
| Shipping (inner) case width |
30.5cm |
| Silent mode |
Yes |
| Supported motherboard form factors |
ATX |
| Sustainability certificates |
ENERGY STAR, ErP |
| Total power |
750 W |
| Type |
PC power supply unit |
| Warranty period |
10 year(s) |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Weight |
1.96kg |
| Width |
150mm |
