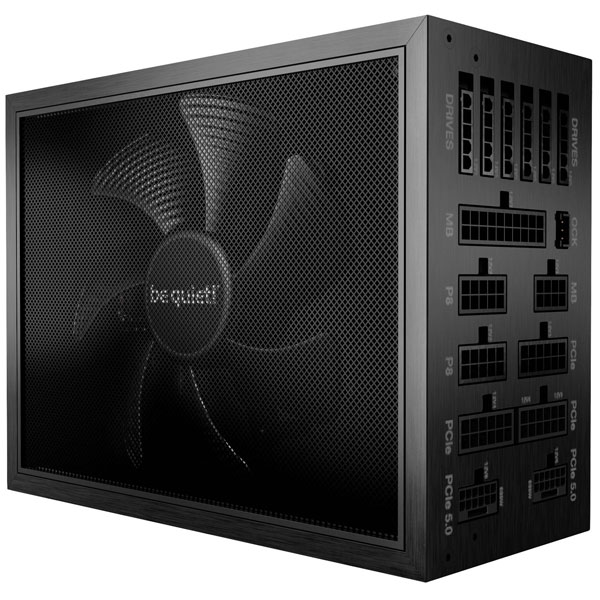

BeQuiet BN332 Dark Power Pro 13 is a 1600W power supply unit that stands out in the realm of computer power supply units due to its 80 PLUS Titanium efficiency rating, ensuring maximum energy efficiency under typical operating conditions. This high-capacity PSU is engineered to provide reliable power delivery for demanding computing environments, making it particularly suitable for high-performance gaming PCs, workstations, and servers that require a stable and efficient power source. The unit's comprehensive set of connectors and modular design allows for improved airflow and reduced cable clutter within the chassis, making it a practical choice for systems with extensive hardware configurations. Typically employed in fields that demand robust computational power, such as digital content creation and scientific simulations, this power supply unit is built for users that prioritise both performance and energy efficiency.
| Power Rating |
751 W - |
| +5V / DC |
3.5A |
| 12V / DC |
45A |
| -12V / DC |
0.5A |
| 3.3V DC |
25A |
| 5 V DC |
25A |
| 6-pin PCIe |
6 |
| 80 PLUS certification |
80 PLUS Titanium |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
115 - 240 V |
| ATX power connector (20+4 pin) |
Yes |
| ATX version |
3.1 |
| Bearing technology |
FDB |
| Cable tie(s) included |
Yes |
| Cables included |
CPU, PCIe, Peripheral (Molex), SATA |
| Cabling type |
Fully-Modular |
| Colour |
Black |
| Combined power (+12V) |
1600 W |
| Combined power (+3.3V) |
150 W |
| Combined power (+5V) |
150 W |
| Combined power (+5Vsb) |
17.5 W |
| Combined power (-12V) |
6 W |
| Compliance certificates |
CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
| Cooling |
Active |
| Cooling type |
Active |
| CPU power cable length |
70cm |
| Depth |
200mm |
| Design Height |
86mm |
| Dimensions |
(W x H x D) 150 x 86 x 200 mm |
| Efficiency |
94.5% |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| EPS version |
2.92 |
| Fan diameter |
13.5 cm |
| Height |
86mm |
| Hold time |
18 ms |
| Input Current |
15 - 9 A |
| Max output current (+12V1) |
40 A |
| Max output current (+12V2) |
40 A |
| Max output current (+12V3) |
45 A |
| Max output current (+12V4) |
45 A |
| Max output current (+3.3V) |
25 A |
| Max output current (+5V) |
25 A |
| Max output current (+5Vsb) |
3.5 A |
| Max output current (-12V) |
0.5 A |
| Mean time between failures (MTBF) |
100000 h |
| Motherboard power cable length |
60cm |
| Motherboard power connector |
20+4 pin ATX |
| Noise Level |
31.1 dB |
| Number of fans |
1 fan(s) |
| Number of PATA power connectors |
5 |
| Number of SATA power connectors |
16 |
| Package depth |
417mm |
| Package height |
152mm |
| Package weight |
6.9 kg |
| Package width |
253mm |
| PCI Express connector |
Yes |
| PCI Express power cable length |
60cm |
| PCI Express power connectors (6+2 pin) |
6 |
| Peak power |
1700 W |
| Peripheral (Molex) power cable length |
600,750,900,1050 mm |
| Power Factor |
0.99 |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power supply |
115 - 240V |
| Power supply unit (PSU) form factor |
ATX |
| Product colour |
Black |
| Product Type |
PC power supply unit |
| Products per shipping (inner) case |
2 pc(s) |
| PSU output power |
1600W |
| Purpose |
PC |
| SATA power cable length |
500,600,750,800,900,950,1050 mm |
| Shipping (inner) case height |
28.3cm |
| Shipping (inner) case length |
44cm |
| Shipping (inner) case net weight |
14.6 kg |
| Shipping (inner) case width |
32.5cm |
| Sustainability certificates |
ENERGY STAR, ErP, Triman |
| Sustainability compliance |
Yes |
| Total power |
1600 W |
| Type |
PC power supply unit |
| Warranty period |
10 year(s) |
| Weight |
2.44kg |
| Width |
150mm |
