BeQuiet BN331, Dark Power Pro 13, is a high-performance 1300W PC power supply unit designed for demanding computing environments. This power supply is distinguished by its 80 PLUS Titanium certification, indicating superior energy efficiency, which is critical for minimising operational costs and heat generation in high-load systems. It is well-suited for use in advanced workstation setups, servers, and high-end gaming computers where reliable power delivery and stability are imperative. Engineers will appreciate its robust design, high efficiency, and its capability to support multiple graphics card configurations and other power-intensive components, making it an ideal choice for projects requiring significant computational power.
| Power Rating |
751 W - |
| +5V / DC |
3.5A |
| 12V / DC |
40A |
| -12V / DC |
0.5A |
| 3.3V DC |
25A |
| 5 V DC |
25A |
| 6-pin PCIe |
6 |
| 80 PLUS certification |
80 PLUS Titanium |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
115 - 240 V |
| ATX power connector (20+4 pin) |
Yes |
| ATX version |
3.0 |
| Bearing technology |
FDB |
| Cable tie(s) included |
Yes |
| Cables included |

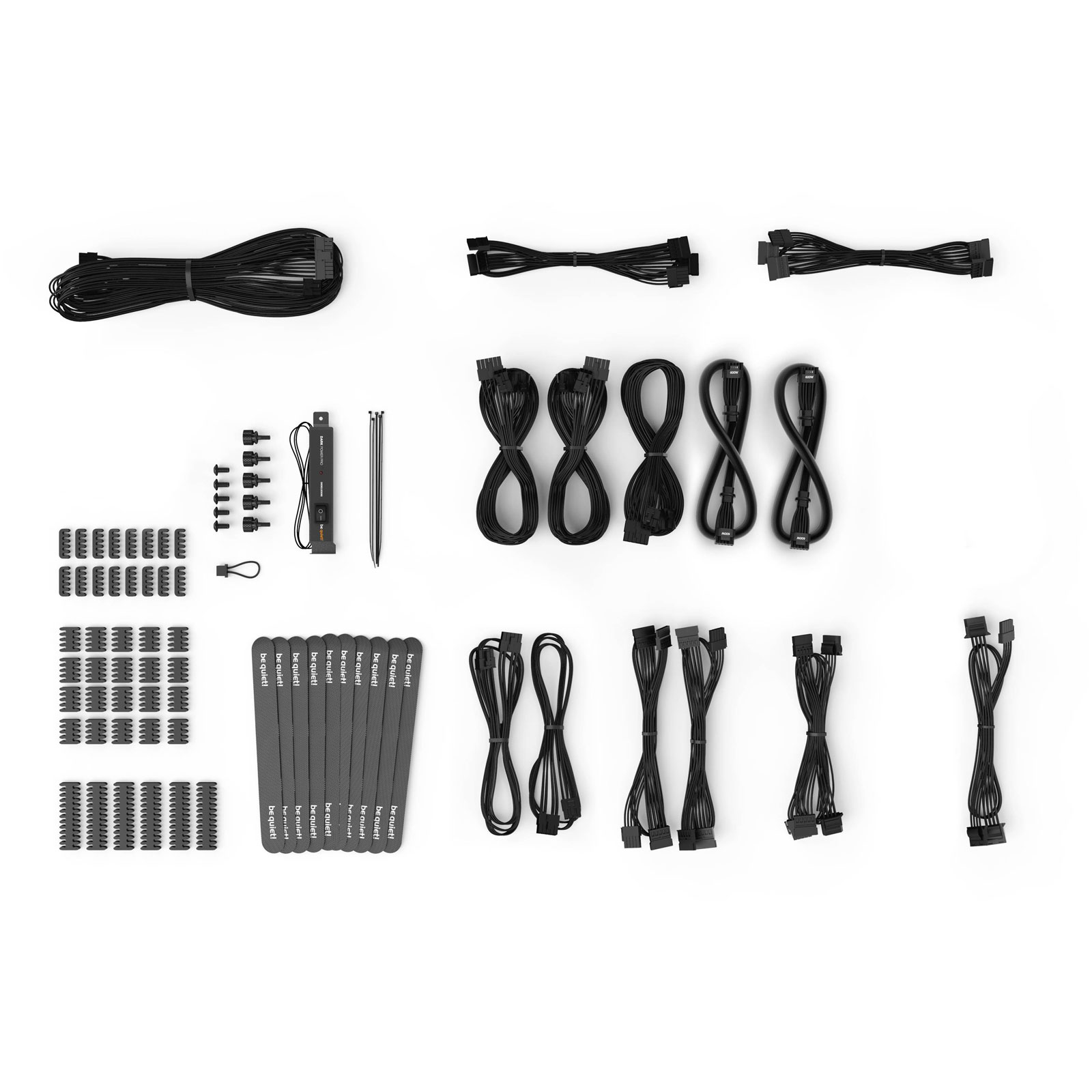

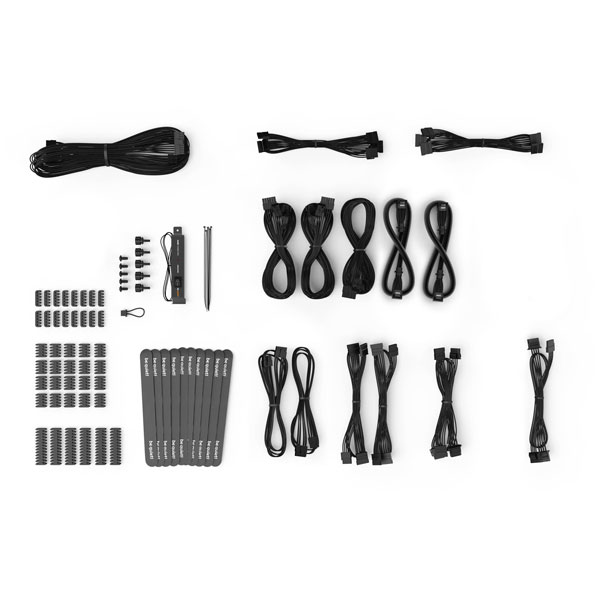

CPU, PCIe, Peripheral (Molex), SATA |
| Cabling type |
Fully-Modular |
| Colour |
Black |
| Combined power (+12V) |
1300 W |
| Combined power (+3.3V) |
150 W |
| Combined power (+5V) |
150 W |
| Combined power (+5Vsb) |
17.5 W |
| Combined power (-12V) |
6 W |
| Compliance certificates |
CCC, CE, Federal Communications Commission (FCC), UKCA |
| Cooling |
Active |
| Cooling type |
Active |
| CPU power cable length |
70cm |
| Depth |
200mm |
| Design Height |
86mm |
| Dimensions |
(W x H x D) 150 x 86 x 200 mm |
| Efficiency |
94.5% |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| EPS version |
2.92 |
| Fan diameter |
13.5 cm |
| Height |
86mm |
| Hold time |
18 ms |
| Input Current |
15 - 9 A |
| Max output current (+12V1) |
35 A |
| Max output current (+12V2) |
35 A |
| Max output current (+12V3) |
40 A |
| Max output current (+12V4) |
40 A |
| Max output current (+3.3V) |
25 A |
| Max output current (+5V) |
25 A |
| Max output current (+5Vsb) |
3.5 A |
| Max output current (-12V) |
0.5 A |
| Mean time between failures (MTBF) |
100000 h |
| Motherboard power cable length |
60cm |
| Motherboard power connector |
20+4 pin ATX |
| Noise Level |
23.2 dB |
| Number of fans |
1 fan(s) |
| Number of PATA power connectors |
5 |
| Number of SATA power connectors |
16 |
| Package depth |
417mm |
| Package height |
152mm |
| Package weight |
6.8 kg |
| Package width |
253mm |
| PCI Express connector |
Yes |
| PCI Express power cable length |
60cm |
| PCI Express power connectors (6+2 pin) |
6 |
| Peak power |
1400 W |
| Peripheral (Molex) power cable length |
600,750,900,1050 mm |
| Power Factor |
0.99 |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power supply |
115 - 240V |
| Power supply unit (PSU) form factor |
ATX |
| Product colour |
Black |
| Product Type |
PC power supply unit |
| Products per shipping (inner) case |
2 pc(s) |
| PSU output power |
1300W |
| Purpose |
PC |
| SATA power cable length |
500,600,750,800,900,950,1050 mm |
| Shipping (inner) case height |
28.3cm |
| Shipping (inner) case length |
44cm |
| Shipping (inner) case net weight |
14.4 kg |
| Shipping (inner) case width |
32.5cm |
| Sustainability compliance |
Yes |
| Total power |
1300 W |
| Type |
PC power supply unit |
| Warranty period |
10 year(s) |
| Weight |
2.41kg |
| Width |
150mm |
