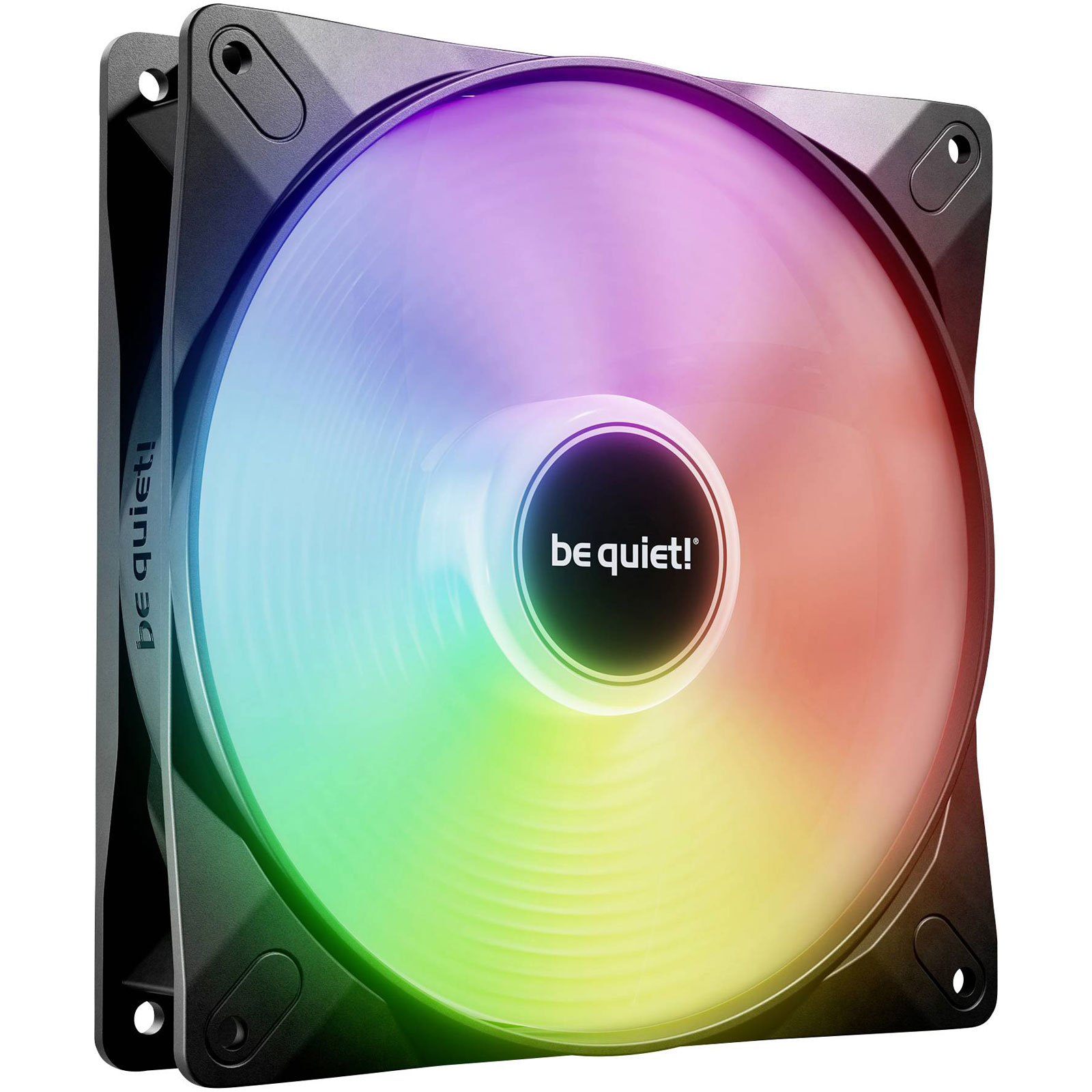

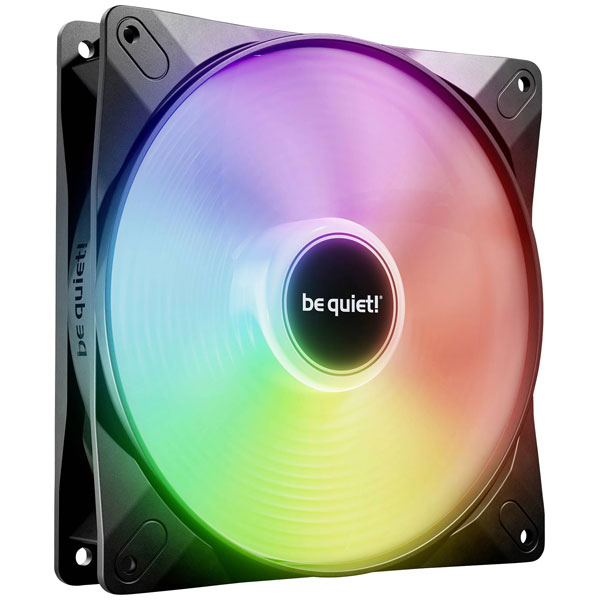

BeQuiet BL126, Light Wings LX PC fan, is a high-performance 140x140x25 mm enclosure fan engineered for optimal cooling in computer systems. Designed for efficient heat dissipation, this fan utilises PWM (Pulse Width Modulation) control to provide precise speed adjustments, enabling tailored thermal management for various cooling requirements. Its integrated LEDs enhance visibility within the system enclosure while maintaining a sleek aesthetic. Compatible with contemporary PC cases, the BeQuiet BL126 is excellently suited for computer builds requiring enhanced airflow, such as gaming rigs, workstations, and server environments, ensuring sustained system performance and reliability.
| Type |
PC fan |
| Fan Size |
140mm |
| Colour |
Black |
| Air Discharge |
95m³/h |
| Airflow |
95 m³/h |
| Bearing Type |
Rifle bearing |
| Compliance certificates |
CE, RoHS, UKCA, WEEE |
| Connection |
4-pin PWM |
| Content |
1 |
| Depth |
25mm |
| Dimensions |
(W x H x D) 140 x 140 x 25 mm |
| Fan connector |
4-pin |
| Fan current |
0.09 A |
| Fan diameter |
14 cm |
| Fan dimensions (W x D x H) |
140 x 140 x 25 mm |
| Fan weight |
165 g |
| Height |
140mm |
| Illumination Colour |
Multi |
| Illumination LED |
Yes |
| LED connector type |
3-pin |
| Maximum air pressure |
0.9 mmH2O |
| Maximum Airflow |
56 cfm |
| Maximum Current |
0.3 A |
| Mean time between failures (MTBF) |
60000 h |
| Noise emission |
20.1 dB - 30 dB |
| Noise emission (max.) |
22.9dB |
| Noise level (high speed) |
22.9 dB |
| Number of fan blades |
7 |
| Number of fans |
1 fan(s) |
| Number of LEDs |
16 |
| Number of screws |
4 |
| Package depth |
184mm |
| Package height |
27mm |
| Package weight |
200 g |
| Package width |
142mm |
| Product colour |
Black |
| Product Type |
PC fan |
| Products per shipping (inner) case |
72 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
| Quantity per pack |
1 pc(s) |
| Rated Voltage |
12 V |
| Rotational speed (max) |
1200 RPM |
| Rotational speed (max.) |
1200U/min |
| Screws included |
Yes |
| Shipping (inner) case gross weight |
15.8 kg |
| Shipping (inner) case height |
33cm |
| Shipping (inner) case length |
49.4cm |
| Shipping (inner) case width |
37.8cm |
| Suitable location |
Computer case |
| Type of bearing |
Rifle bearing |
| Voltage |
5 - 13.2 V |
| Weight |
165g |
| Width |
140mm |
