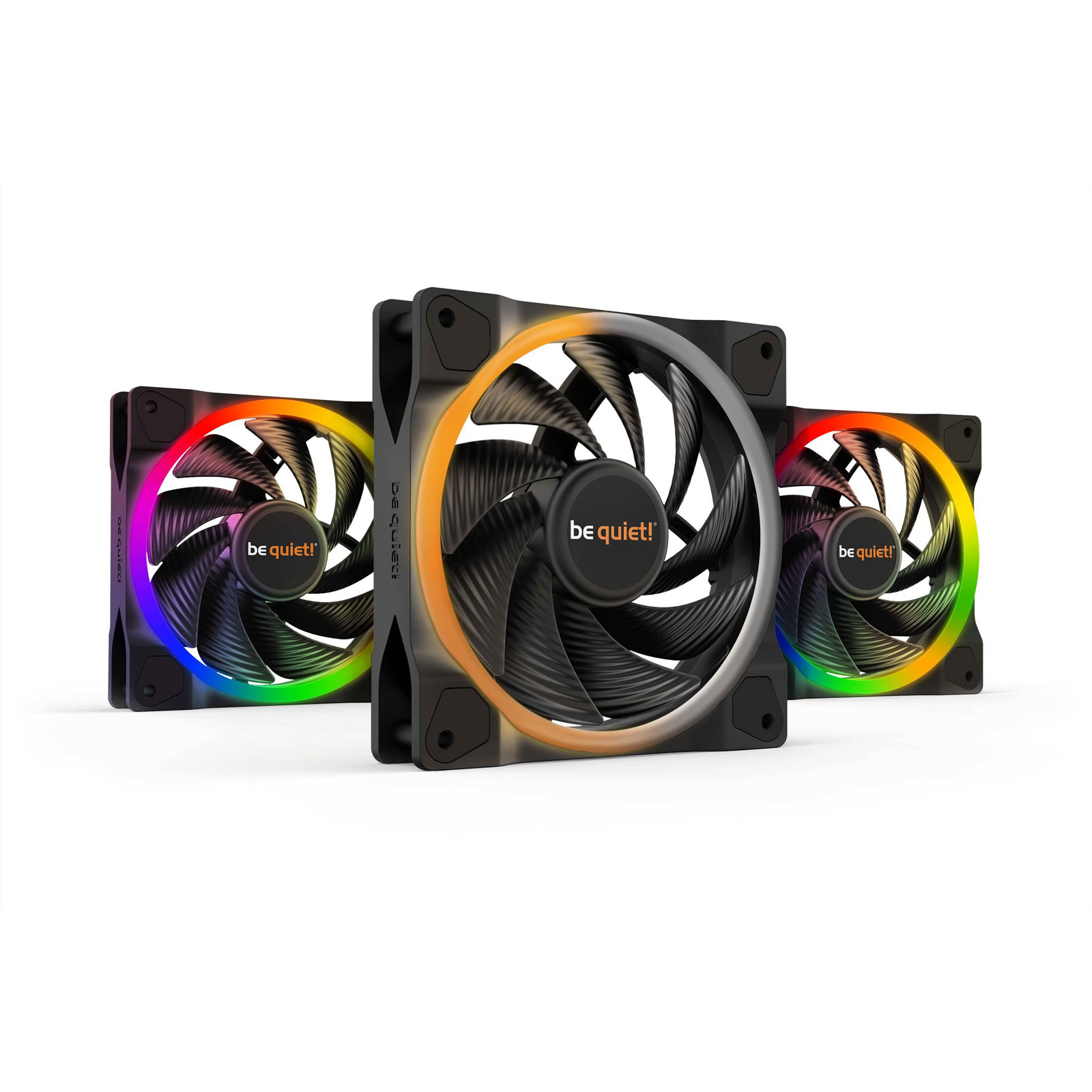

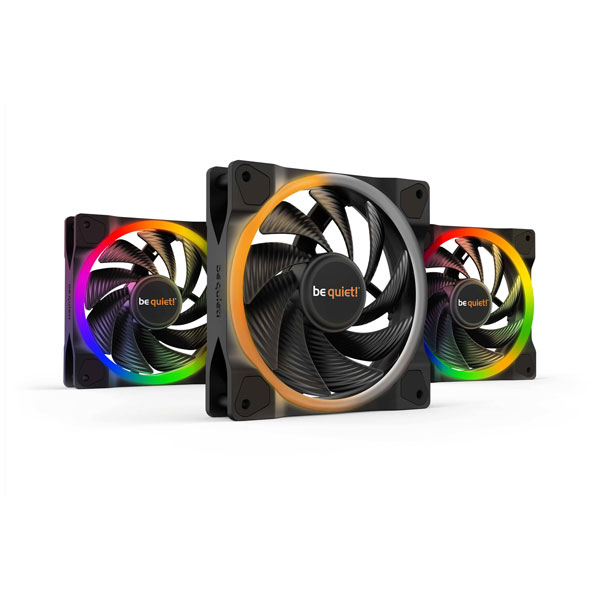

BeQuiet BL077 is a precision-engineered Light Wings PC fan designed to perform efficiently as an enclosure fan. With its sophisticated integration of LED lighting, this black fan provides effective cooling while adding aesthetic appeal to computing systems. The fan fits seamlessly into computer casing ventilation systems, making it suitable for cooling operations in a wide range of desktop PC configurations. Its robust design ensures durability and reliable airflow, crucial for maintaining optimal temperatures in high-performance computing environments such as gaming and graphic design workstations.
| Type |
PC fan |
| Fan Size |
120mm |
| Colour |
Black |
| Air Discharge |
88.86m³/h |
| Airflow |
88.86 m³/h |
| Bearing Type |
Rifle bearing |
| Cable Length |
0.5 m |
| Compatible processor series |
Not supported |
| Compliance certificates |
CE, RoHS, WEEE |
| Connection |
4-pin |
| Content |
1 |
| Country of origin |
China |
| Fan connector |
4-pin |
| Fan diameter |
12 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Fan weight |
210 g |
| Harmonized System (HS) code |
84733080 |
| Illumination Colour |
Multi |
| Illumination LED |
Yes |
| Maximum air pressure |
2.6 mmH2O |
| Maximum Airflow |
52.3 cfm |
| Mean time between failures (MTBF) |
60000 h |
| Noise emission |
30.1 dB - 40 dB |
| Noise emission (max.) |
31dB |
| Noise level (high speed) |
31 dB |
| Number of screws |
16 |
| Package depth |
172mm |
| Package height |
86.5mm |
| Package weight |
864 g |
| Package width |
133mm |
| Power consumption (typical) |
5.4 W |
| Product colour |
Black |
| Product Type |
PC fan |
| Products per shipping (inner) case |
10 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
| Quantity per pack |
3 pc(s) |
| Rated current |
0.6 A |
| Rated Voltage |
12 V |
| Rotational speed (max) |
2500 RPM |
| Rotational speed (max.) |
2500U/min |
| Safety current |
0.45 Ah |
| Screws included |
Yes |
| Shipping (inner) case gross weight |
9.26 kg |
| Shipping (inner) case height |
20cm |
| Shipping (inner) case length |
45.4cm |
| Shipping (inner) case width |
28.3cm |
| Suitable location |
Computer case |
| Supported processor sockets |
Not supported |
| Sustainability compliance |
Yes |
| Type of bearing |
Fluid dynamic bearing |
| Voltage |
5 - 13.2 V |
| Weight |
210g |
