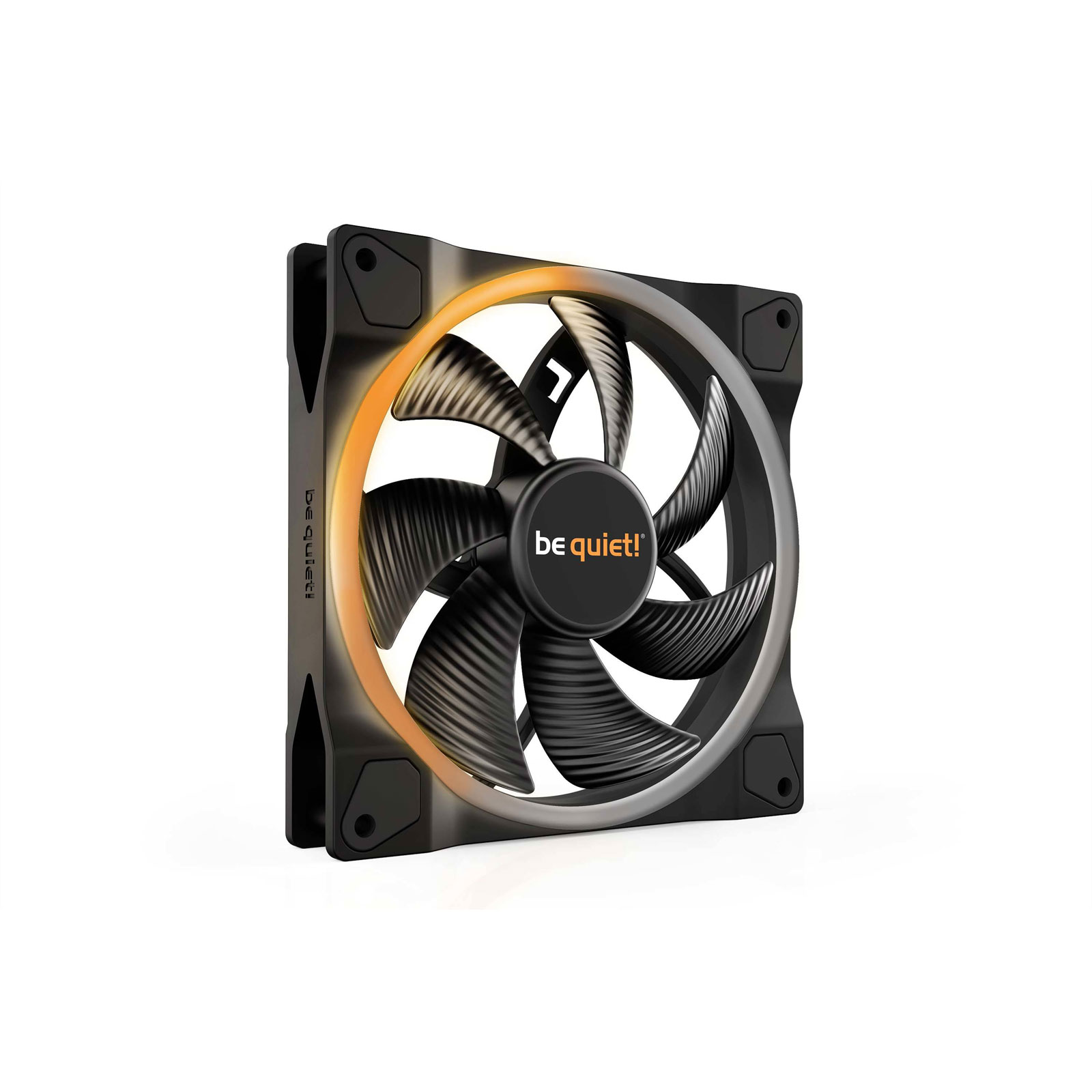

BeQuiet BL074 Light Wings PC fan is a meticulously engineered product designed to enhance the cooling efficiency of computer systems. This Light Wings PC fan, measuring 140x25x140mm, integrates advanced LED lighting to not only ensure optimal airflow but also add an aesthetic appeal to any PC casing. Built for robust performance, it serves as an ideal enclosure fan within computer cases, facilitating superior ventilation and thermal management. Its application is crucial in maintaining optimal temperatures for high-performance components, making it a preferred choice for engineers and system builders seeking reliable cooling solutions in both gaming and professional computing environments.
| Type |
PC fan |
| Fan Size |
140mm |
| Colour |
Black |
| Air Discharge |
95.14m³/h |
| Airflow |
95.14 m³/h |
| Bearing Type |
Rifle bearing |
| Cable Length |
0.5 m |
| Compatible processor series |
Not supported |
| Compliance certificates |
CE, RoHS, WEEE |
| Connection |
4-pin |
| Content |
1 |
| Country of origin |
China |
| Depth |
140mm |
| Design Height |
25mm |
| Dimensions |
(W x H x D) 140 x 25 x 140 mm |
| Fan connector |
4-pin |
| Fan diameter |
14 cm |
| Fan dimensions (W x D x H) |
140 x 140 x 25 mm |
| Harmonized System (HS) code |
84733080 |
| Height |
25mm |
| Illumination Colour |
Multi |
| Illumination LED |
Yes |
| Maximum air pressure |
1.49 mmH2O |
| Maximum Airflow |
56 cfm |
| Mean time between failures (MTBF) |
60000 h |
| Noise emission |
20.1 dB - 30 dB |
| Noise emission (max.) |
23.3dB |
| Noise level (high speed) |
23.3 dB |
| Number of screws |
4 |
| Package depth |
173mm |
| Package height |
29.5mm |
| Package weight |
325 g |
| Package width |
153mm |
| Power consumption (typical) |
3.84 W |
| Product colour |
Black |
| Product Type |
PC fan |
| Products per shipping (inner) case |
30 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
| Quantity per pack |
1 pc(s) |
| Rated current |
0.67 A |
| Rated Voltage |
12 V |
| Rotational speed (max) |
1500 RPM |
| Rotational speed (max.) |
1500U/min |
| Safety current |
0.32 Ah |
| Screws included |
Yes |
| Shipping (inner) case gross weight |
10.5 kg |
| Shipping (inner) case height |
20cm |
| Shipping (inner) case length |
47.8cm |
| Shipping (inner) case width |
32cm |
| Suitable location |
Computer case |
| Supported processor sockets |
Not supported |
| Sustainability compliance |
Yes |
| Type of bearing |
Fluid dynamic bearing |
| Voltage |
5 - 13.2 V |
| Weight |
241g |
| Width |
140mm |
