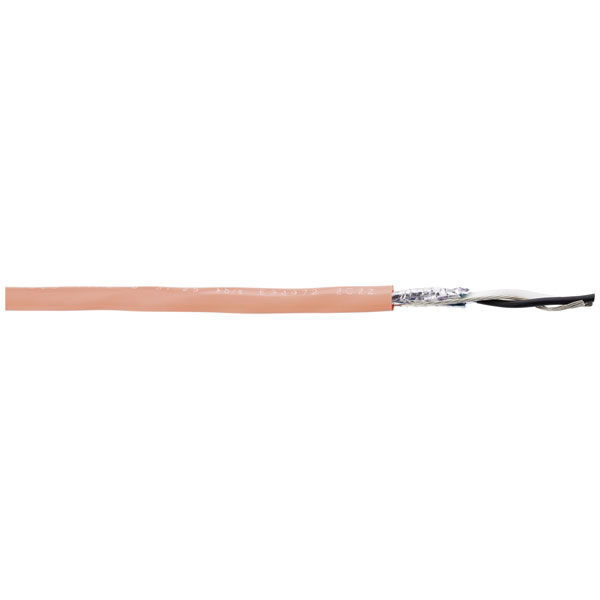

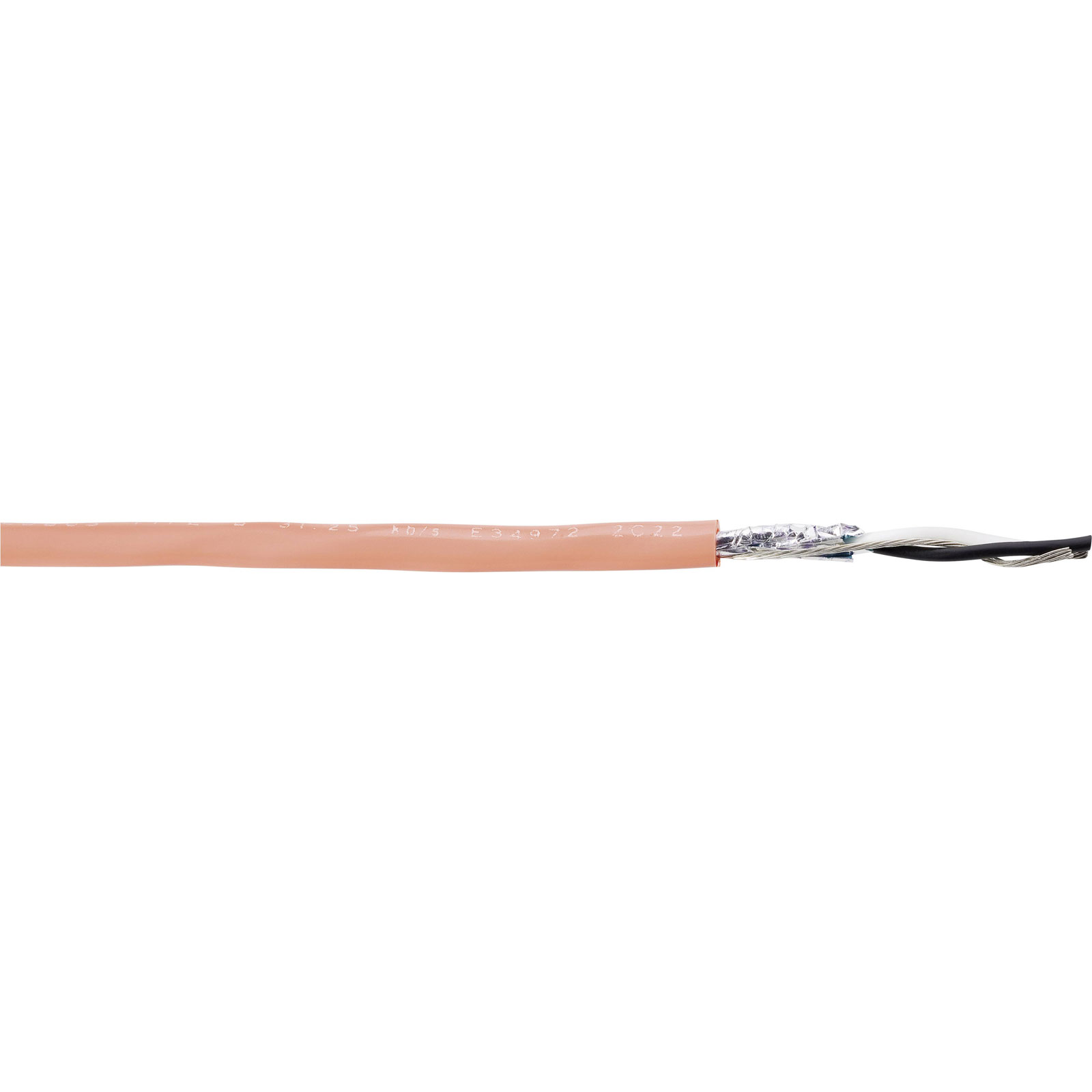

Belden 3077F003500 DataBus Bus Cable 2x0.50mm² Orange Per Metre

Belden manufactures the 3077F003500 bus cable, featuring a configuration of 2 x 0.50 mm² wires in an orange jacket. This cable is sold by the metre and is known for its flexibility and durability, suitable for industrial environments. Common applications include use in fieldbus systems for data transmission in automation and control settings.

Colour	Orange
Number of Cores	2
Conductor Cross Section	0.50mm²
AWG	22 AWG
Insulation Material	Polyvinyl Chloride (PVC)
Length	Sold per metre
Cable Diameter	5mm
Cable features	Flexible
Halogen-free	No
Max. temperature range (fixed installation)	+105°C
Max. temperature range (flexible installation)	+105°C
Maximum Wire Size AWG	22
Min. temperature range (fixed installation)	-30°C
Min. temperature range (flexible installation)	-30°C
Misc Attribute 1	Feldbus 3077F
Misc Attribute 2	Flexible
Packaged	No
Shielded	Yes
Sold by Metre	Yes
Type	Bus cable
