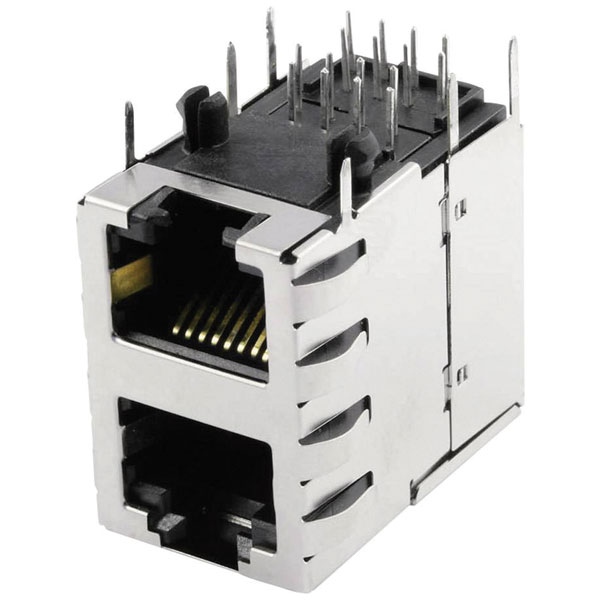

BEL SS-738811S-PG4-AC Modular Socket 2x1 Port Cat 5 Shielded 8P8C

BEL Stewart Connectors manufactures the SS-738811S-PG4-AC, a modular mounted socket with a double-decker design and nickel-coated, shielded housing. This 8P8C RJ45 connector is suitable for Cat 5 networking applications and is horizontally mounted. It is typically used in networking and telecommunications systems.

Type	RJ45 CAT 5
Gender	Socket
Mounting Type	PCB
Shielded/Shrouded	Shielded Housing
Number of Positions/ Contacts	8P8C
Colour	Nickel-coated, Metal
Connection	Solder pins
Connector standard	RJ45
Connector Type	Socket, horizontal mount
Contact Material	Copper alloy gold plated
LAN Category	Cat 5
Material (details)	Thermoplastic UL94V0/copper alloy
Mating cycles	min. 750
Misc Attribute 2	2-way
Nominal current (details)	1.5A
Nominal voltage (details)	150V AC
Number of Ports	1
Number of Rows	2
Seal Type	Snap-in
Specification	CAT 3
Temperature Range	-40 - +85°C
