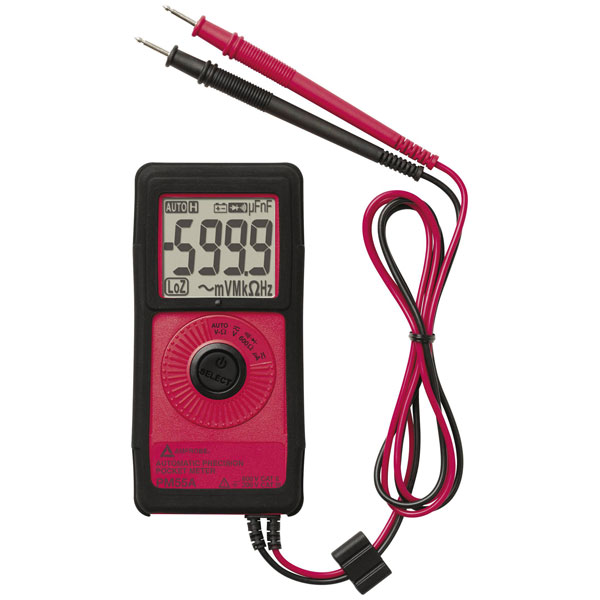

Beha Amprobe 2727721 PM55A Multimeter Digital CAT II 600V CAT III 300V Display

Beha Amprobe 2727721 PM55A is a reliable digital multimeter designed for precise measurement in electrical engineering tasks. This hand-held device is classified under CAT II 600V and CAT III 300V safety standards, ensuring safe usage in various electrical environments. The PM55A multimeter features a 6000-count digital display, offering clear and accurate readings for voltage, current, and resistance measurements. Ideal for use in troubleshooting electrical systems, it is well-suited for applications ranging from field service to maintenance tasks in residential, commercial, and light industrial settings. Equipped with robust safety features, this multimeter supports engineers and technicians in performing efficient and secure diagnostic work.

Type	Average
AC Voltage Max	600V
DC Voltage Max	450V
A AC reading range (min.)	0.1µA
A DC reading range (max.)	2000µA
AC resistance	5MΩ
Amperage reading range AC (max.)	2000µA
Amperage reading range DC (min.)	0.1µA
Basic accuracy	1%
Current reading	AC/DC
Dc Resistance	5MΩ
Dimensions	(L x W x H) 10 x 53 x 113 mm
Display	Digital
Display Counts	6000
Frequency Range	50 - 60Hz
Frequency reading range	10 Hz - 30kHz
Height	113mm
Length	10mm
Measurement type (details)	Average
Power supply	3V DC
Product Type	Handheld multimeter
Reading range - capacity	50 nF - 100µF
Reading range - resistance	0.1 Ω - 6MΩ
V AC reading range (min.)	0.001V
Voltage metering	AC/DC
Voltage reading range DC (min.)	0.001V
Weight	78g
Width	53mm
